AXI4Ops.cpp File Reference

#include "circt/Dialect/AXI4/AXI4Ops.h"
#include "llvm/ADT/STLExtras.h"
#include "llvm/ADT/StringExtras.h"
#include "llvm/Support/MathExtras.h"
#include "circt/Dialect/AXI4/AXI4.cpp.inc"

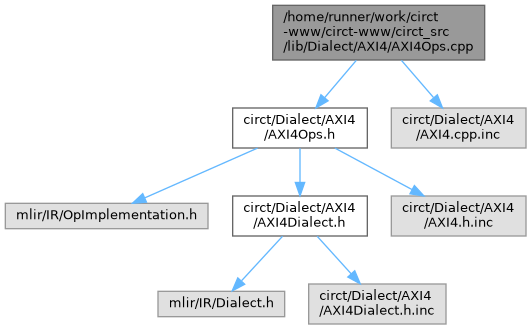

Include dependency graph for AXI4Ops.cpp:

Go to the source code of this file.

Macros
#define	GET_OP_CLASSES

Functions
static LogicalResult	verifyWidthsMatch (XbarOp op, ArrayRef< WidthField > fields, PortType port, const Twine &portDesc, PortType reference, const Twine &referenceDesc)
	Verify that port agrees with reference on each of the widths in fields.
static std::pair< size_t, WindowAttr >	findDownstreamWindow (ValueRange downstream, uint64_t address)
	The downstream port and window covering address, or a null window if no downstream port covers it.
static std::pair< uint64_t, uint64_t >	routingOutstandingBelow (ValueRange upstream, PortType downstream)
	The outstanding writes and reads a routing op sends down downstream, from the upstream ports whose windows reach it.
static LogicalResult	verifyOutstanding (Operation *op, const Twine &portDesc, PortType port, std::pair< uint64_t, uint64_t > reaching, const Twine &sourceDesc)
	Verify that port holds exactly the outstanding requests reaching it.

Variables
static constexpr WidthField	kWidths []
static constexpr size_t	kNumSharedWidths = 3

Macro Definition Documentation

GET_OP_CLASSES

#define GET_OP_CLASSES

Definition at line 215 of file AXI4Ops.cpp.

Function Documentation

findDownstreamWindow()

static std::pair< size_t, WindowAttr > findDownstreamWindow ( ValueRange  downstream, uint64_t  address  )

static

The downstream port and window covering address, or a null window if no downstream port covers it.

Definition at line 63 of file AXI4Ops.cpp.

routingOutstandingBelow()

static std::pair< uint64_t, uint64_t > routingOutstandingBelow ( ValueRange  upstream, PortType  downstream  )

static

The outstanding writes and reads a routing op sends down downstream, from the upstream ports whose windows reach it.

Definition at line 80 of file AXI4Ops.cpp.

verifyOutstanding()

static LogicalResult verifyOutstanding ( Operation *  op, const Twine &  portDesc, PortType  port, std::pair< uint64_t, uint64_t >  reaching, const Twine &  sourceDesc  )

static

Verify that port holds exactly the outstanding requests reaching it.

Definition at line 93 of file AXI4Ops.cpp.

verifyWidthsMatch()

static LogicalResult verifyWidthsMatch ( XbarOp  op, ArrayRef< WidthField >  fields, PortType  port, const Twine &  portDesc, PortType  reference, const Twine &  referenceDesc  )

static

Verify that port agrees with reference on each of the widths in fields.

Definition at line 46 of file AXI4Ops.cpp.

Variable Documentation

kNumSharedWidths

constexpr size_t kNumSharedWidths = 3

staticconstexpr

Definition at line 42 of file AXI4Ops.cpp.

kWidths

constexpr WidthField kWidths[]

staticconstexpr

Initial value:

= {
    {"addr_width", &PortType::getAddrWidth},
    {"data_width", &PortType::getDataWidth},
    {"user_width", &PortType::getUserWidth},
    {"write_id_width", &PortType::getWriteIdWidth},
    {"read_id_width", &PortType::getReadIdWidth}}

Definition at line 36 of file AXI4Ops.cpp.
