esi::TypedReadPort< void > Class Reference

Specialization for void — read discards data and returns nothing. More...

#include <TypedPorts.h>

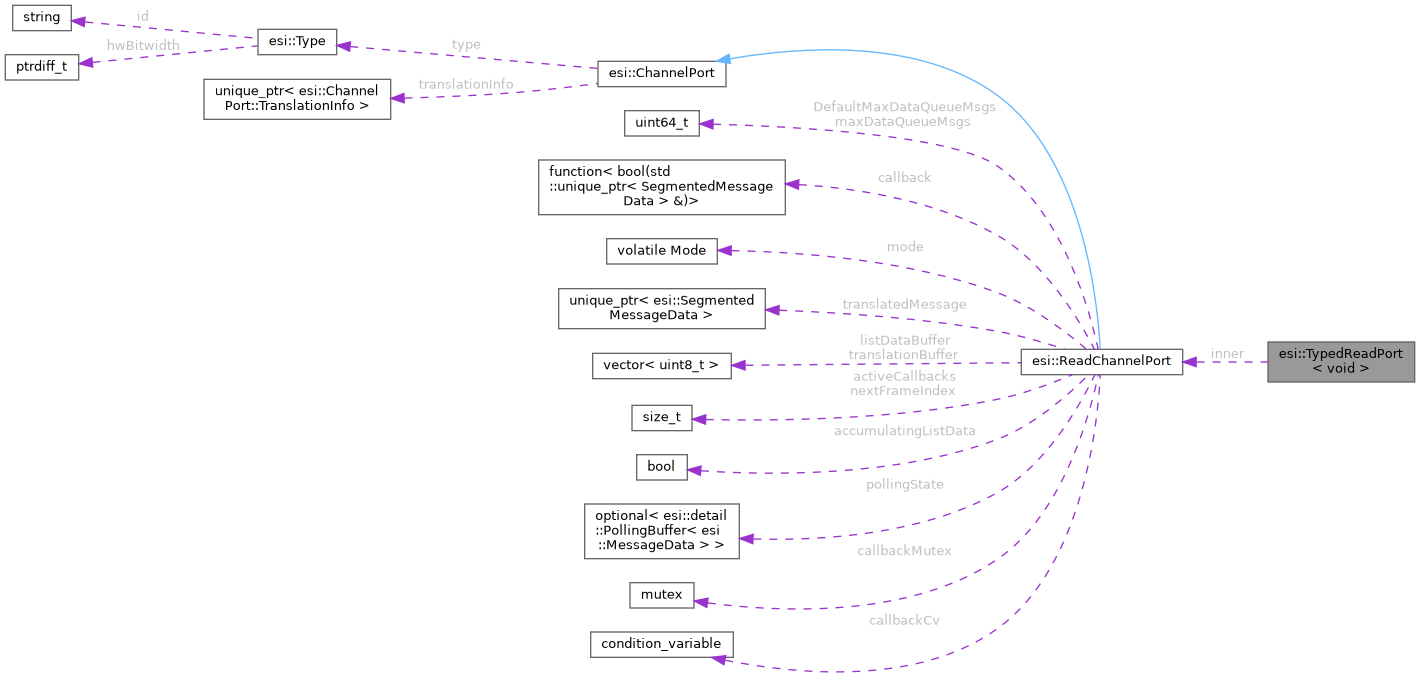

Collaboration diagram for esi::TypedReadPort< void >:

Public Member Functions
	TypedReadPort (ReadChannelPort &port)
	TypedReadPort (ReadChannelPort *port)
	TypedReadPort (const TypedReadPort &)=delete
TypedReadPort &	operator= (const TypedReadPort &)=delete
	TypedReadPort (TypedReadPort &&)=delete
TypedReadPort &	operator= (TypedReadPort &&)=delete
	~TypedReadPort ()
void	connect (const ChannelPort::ConnectOptions &opts={std::nullopt, false})
void	connect (std::function< bool()> callback, const ChannelPort::ConnectOptions &opts={std::nullopt, false})
void	read ()
std::future< void >	readAsync ()
void	disconnect ()
bool	isConnected () const
ReadChannelPort &	raw ()
const ReadChannelPort &	raw () const

Private Attributes
ReadChannelPort *	inner

Detailed Description

Specialization for void — read discards data and returns nothing.

Definition at line 893 of file TypedPorts.h.

Constructor & Destructor Documentation

TypedReadPort() [1/4]

esi::TypedReadPort< void >::TypedReadPort ( ReadChannelPort &  port )

inlineexplicit

Definition at line 895 of file TypedPorts.h.

TypedReadPort() [2/4]

esi::TypedReadPort< void >::TypedReadPort ( ReadChannelPort *  port )

inline

Definition at line 897 of file TypedPorts.h.

TypedReadPort() [3/4]

esi::TypedReadPort< void >::TypedReadPort ( const TypedReadPort< void > &  )

delete

TypedReadPort() [4/4]

esi::TypedReadPort< void >::TypedReadPort ( TypedReadPort< void > &&  )

delete

~TypedReadPort()

esi::TypedReadPort< void >::~TypedReadPort ( )

inline

Definition at line 903 of file TypedPorts.h.

References esi::TypedReadPort< T, SkipTypeCheck >::disconnect(), esi::TypedReadPort< T, SkipTypeCheck >::inner, and esi::ReadChannelPort::isConnected().

Member Function Documentation

connect() [1/2]

void esi::TypedReadPort< void >::connect ( const ChannelPort::ConnectOptions &  opts = {std::nullopt, false} )

inline

Definition at line 908 of file TypedPorts.h.

connect() [2/2]

void esi::TypedReadPort< void >::connect ( std::function< bool()>  callback, const ChannelPort::ConnectOptions &  opts = {std::nullopt, false}  )

inline

Definition at line 916 of file TypedPorts.h.

disconnect()

void esi::TypedReadPort< void >::disconnect ( )

inline

Definition at line 938 of file TypedPorts.h.

References esi::ReadChannelPort::disconnect(), and esi::TypedReadPort< T, SkipTypeCheck >::inner.

isConnected()

bool esi::TypedReadPort< void >::isConnected ( ) const

inline

Definition at line 939 of file TypedPorts.h.

References esi::TypedReadPort< T, SkipTypeCheck >::inner, and esi::ReadChannelPort::isConnected().

operator=() [1/2]

TypedReadPort & esi::TypedReadPort< void >::operator= ( const TypedReadPort< void > &  )

delete

operator=() [2/2]

TypedReadPort & esi::TypedReadPort< void >::operator= ( TypedReadPort< void > &&  )

delete

raw() [1/2]

ReadChannelPort & esi::TypedReadPort< void >::raw ( )

inline

Definition at line 941 of file TypedPorts.h.

References esi::TypedReadPort< T, SkipTypeCheck >::inner.

raw() [2/2]

const ReadChannelPort & esi::TypedReadPort< void >::raw ( ) const

inline

Definition at line 942 of file TypedPorts.h.

References esi::TypedReadPort< T, SkipTypeCheck >::inner.

read()

void esi::TypedReadPort< void >::read ( )

inline

Definition at line 926 of file TypedPorts.h.

References esi::TypedReadPort< T, SkipTypeCheck >::inner, and esi::ReadChannelPort::read().

Referenced by esiaccel.bsp.common.ESI_Manifest_ROM_Wrapper::build().

readAsync()

std::future< void > esi::TypedReadPort< void >::readAsync ( )

inline

Definition at line 931 of file TypedPorts.h.

References esi::TypedReadPort< T, SkipTypeCheck >::inner, and esi::ReadChannelPort::readAsync().

Member Data Documentation

inner

ReadChannelPort* esi::TypedReadPort< void >::inner

private

Definition at line 945 of file TypedPorts.h.

---

The documentation for this class was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/include/esi/TypedPorts.h
