llvm::yaml::MappingContextTraits< sv::InterfaceOp, Context >::Interface Struct Reference

A YAML-serializable representation of an interface. More...

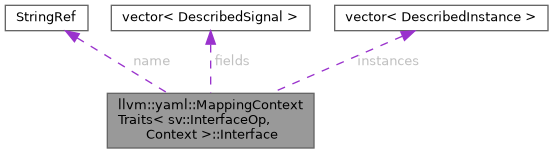

Collaboration diagram for llvm::yaml::MappingContextTraits< sv::InterfaceOp, Context >::Interface:

Public Member Functions
	Interface (IO &io, sv::InterfaceOp &op)
	Construct an Interface from an sv::InterfaceOp. More...
	Interface (IO &io)
	A no-argument constructor is necessary to work with LLVM's YAML library. More...
sv::InterfaceOp	denormalize (IO &)
	This cannot be denormalized back to an interface op. More...

Public Attributes
StringRef	name
	The name of the interface. More...
std::vector< DescribedSignal >	fields
	All ground or vectors that make up the interface. More...
std::vector< DescribedInstance >	instances
	Instantiations of other interfaces. More...

Detailed Description

A YAML-serializable representation of an interface.

This consists of fields (vector or ground types) and nested interfaces.

Definition at line 300 of file GrandCentral.cpp.

Constructor & Destructor Documentation

Interface() [1/2]

llvm::yaml::MappingContextTraits< sv::InterfaceOp, Context >::Interface::Interface ( IO &  io, sv::InterfaceOp &  op  )

inline

Construct an Interface from an sv::InterfaceOp.

This is tuned to "parse" the structure of an interface that the Grand Central pass generates. The structure of Fields and Instances is documented below.

A field will look like the following. The verbatim description is optional:

sv.verbatim "// <description>" {
  firrtl.grandcentral.yaml.type = "description",
  symbols = []}
sv.interface.signal @<name> : <type>

An interface instanctiation will look like the following. The verbatim description is optional.

sv.verbatim "// <description>" {
  firrtl.grandcentral.type = "description",
  symbols = []}
sv.verbatim "<name> <symbol>();" {
  firrtl.grandcentral.yaml.name = "<name>",
  firrtl.grandcentral.yaml.dimensions = [<first dimension>, ...],
  firrtl.grandcentral.yaml.symbol = @<symbol>,
  firrtl.grandcentral.yaml.type = "instance",
  symbols = []}

Definition at line 336 of file GrandCentral.cpp.

Interface() [2/2]

llvm::yaml::MappingContextTraits< sv::InterfaceOp, Context >::Interface::Interface ( IO &  io )

inline

A no-argument constructor is necessary to work with LLVM's YAML library.

Definition at line 383 of file GrandCentral.cpp.

Member Function Documentation

denormalize()

sv::InterfaceOp llvm::yaml::MappingContextTraits< sv::InterfaceOp, Context >::Interface::denormalize ( IO &  )

inline

This cannot be denormalized back to an interface op.

Definition at line 386 of file GrandCentral.cpp.

Member Data Documentation

fields

std::vector<DescribedSignal> llvm::yaml::MappingContextTraits< sv::InterfaceOp, Context >::Interface::fields

All ground or vectors that make up the interface.

Definition at line 305 of file GrandCentral.cpp.

Referenced by esiaccel.types.StructType::bit_width(), esiaccel.types.StructType::deserialize(), esiaccel.types.StructType::is_valid(), and esiaccel.types.StructType::serialize().

instances

std::vector<DescribedInstance> llvm::yaml::MappingContextTraits< sv::InterfaceOp, Context >::Interface::instances

Instantiations of other interfaces.

Definition at line 308 of file GrandCentral.cpp.

name

StringRef llvm::yaml::MappingContextTraits< sv::InterfaceOp, Context >::Interface::name

The name of the interface.

Definition at line 302 of file GrandCentral.cpp.

---

The documentation for this struct was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/FIRRTL/Transforms/GrandCentral.cpp
