esi::BitVector::bit_iterator Class Reference

Forward iterator for iterating over bits from LSB (index 0) to MSB. More...

#include <Values.h>

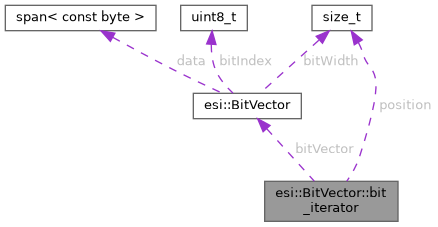

Collaboration diagram for esi::BitVector::bit_iterator:

Public Types
using	difference_type = std::ptrdiff_t
using	value_type = bool
using	pointer = const bool *
using	reference = bool
using	iterator_category = std::forward_iterator_tag

Public Member Functions
	bit_iterator ()=default
	Default constructor.
	bit_iterator (const BitVector *bv, size_t pos=0)
	Construct an iterator at the given bit position.
bool	operator* () const
	Dereference: returns the bit value at the current position.
bit_iterator &	operator++ ()
	Pre-increment: move to next bit.
bit_iterator	operator++ (int)
	Post-increment: move to next bit.
bool	operator== (const bit_iterator &other) const
	Equality comparison.
bool	operator!= (const bit_iterator &other) const
	Inequality comparison.
bool	operator< (const bit_iterator &other) const
	Less-than comparison (for ranges support).
bool	operator== (std::default_sentinel_t) const
	Sentinel-compatible equality (for ranges support).
bool	operator!= (std::default_sentinel_t sent) const
	Sentinel-compatible inequality.

Private Attributes
const BitVector *	bitVector = nullptr
size_t	position = 0

Detailed Description

Forward iterator for iterating over bits from LSB (index 0) to MSB.

Definition at line 114 of file Values.h.

Member Typedef Documentation

difference_type

using esi::BitVector::bit_iterator::difference_type = std::ptrdiff_t

Definition at line 116 of file Values.h.

iterator_category

using esi::BitVector::bit_iterator::iterator_category = std::forward_iterator_tag

Definition at line 120 of file Values.h.

pointer

using esi::BitVector::bit_iterator::pointer = const bool *

Definition at line 118 of file Values.h.

reference

using esi::BitVector::bit_iterator::reference = bool

Definition at line 119 of file Values.h.

value_type

using esi::BitVector::bit_iterator::value_type = bool

Definition at line 117 of file Values.h.

Constructor & Destructor Documentation

bit_iterator() [1/2]

esi::BitVector::bit_iterator::bit_iterator ( )

default

Default constructor.

Referenced by operator!=(), operator++(), operator++(), operator<(), and operator==().

bit_iterator() [2/2]

esi::BitVector::bit_iterator::bit_iterator ( const BitVector * bv, size_t pos = 0 )

inline

Construct an iterator at the given bit position.

Definition at line 126 of file Values.h.

References esi::BitVector::BitVector(), bitVector, and position.

Member Function Documentation

operator!=() [1/2]

bool esi::BitVector::bit_iterator::operator!= ( const bit_iterator & other ) const

inline

Inequality comparison.

Definition at line 155 of file Values.h.

References bit_iterator().

operator!=() [2/2]

bool esi::BitVector::bit_iterator::operator!= ( std::default_sentinel_t sent ) const

inline

Sentinel-compatible inequality.

Definition at line 170 of file Values.h.

operator*()

bool esi::BitVector::bit_iterator::operator* ( ) const

inline

Dereference: returns the bit value at the current position.

Definition at line 130 of file Values.h.

References bitVector, and position.

operator++() [1/2]

bit_iterator & esi::BitVector::bit_iterator::operator++ ( )

inline

Pre-increment: move to next bit.

Definition at line 137 of file Values.h.

References bit_iterator(), and position.

operator++() [2/2]

bit_iterator esi::BitVector::bit_iterator::operator++ ( int )

inline

Post-increment: move to next bit.

Definition at line 143 of file Values.h.

References bit_iterator(), and position.

operator<()

bool esi::BitVector::bit_iterator::operator< ( const bit_iterator & other ) const

inline

Less-than comparison (for ranges support).

Definition at line 160 of file Values.h.

References bit_iterator(), bitVector, and position.

operator==() [1/2]

bool esi::BitVector::bit_iterator::operator== ( const bit_iterator & other ) const

inline

Equality comparison.

Definition at line 150 of file Values.h.

References bit_iterator(), bitVector, and position.

operator==() [2/2]

bool esi::BitVector::bit_iterator::operator== ( std::default_sentinel_t ) const

inline

Sentinel-compatible equality (for ranges support).

Definition at line 165 of file Values.h.

References bitVector, and position.

Member Data Documentation

bitVector

const BitVector* esi::BitVector::bit_iterator::bitVector = nullptr

private

Definition at line 175 of file Values.h.

Referenced by bit_iterator(), operator*(), operator<(), operator==(), and operator==().

position

size_t esi::BitVector::bit_iterator::position = 0

private

Definition at line 176 of file Values.h.

Referenced by bit_iterator(), operator*(), operator++(), operator++(), operator<(), operator==(), and operator==().

---

The documentation for this class was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/include/esi/Values.h
