esi::SegmentedMessageDataCursor Class Reference

Cursor for incremental consumption of a SegmentedMessageData. More...

#include <Common.h>

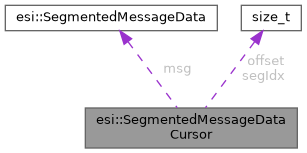

Collaboration diagram for esi::SegmentedMessageDataCursor:

Public Member Functions
	SegmentedMessageDataCursor (const SegmentedMessageData &msg)
std::span< const uint8_t >	remaining () const
	Contiguous span from current position to end of current segment.
Segment	remainingSegment () const
	The unconsumed part of the current segment, with its region.
void	advance (size_t n)
	Advance by n bytes, crossing segment boundaries as needed.
bool	done () const
	True when all segments have been consumed.

Private Attributes
const SegmentedMessageData &	msg
size_t	segIdx = 0
size_t	offset = 0

Detailed Description

Cursor for incremental consumption of a SegmentedMessageData.

Tracks position across segment boundaries. Backends store this alongside a unique_ptr<SegmentedMessageData> for partial writes.

The cursor reads segments through SegmentedMessageData::segment() on every access and caches nothing, so it throws upon reaching a segment which has been take()n – regardless of whether it was created before or after the take().

Deliberately a separate class (not embedded in SegmentedMessageData) so that generated types have no hidden members — their layout matches the hardware wire format exactly.

Definition at line 273 of file Common.h.

Constructor & Destructor Documentation

SegmentedMessageDataCursor()

esi::SegmentedMessageDataCursor::SegmentedMessageDataCursor ( const SegmentedMessageData & msg )

inline

Definition at line 275 of file Common.h.

References msg.

Member Function Documentation

advance()

void SegmentedMessageDataCursor::advance

(

size_t

n

)

Advance by n bytes, crossing segment boundaries as needed.

Definition at line 113 of file Common.cpp.

References done(), msg, offset, segIdx, and esi::Segment::size.

done()

bool SegmentedMessageDataCursor::done

(

)

const

True when all segments have been consumed.

Definition at line 133 of file Common.cpp.

References msg, and segIdx.

Referenced by advance().

remaining()

std::span< const uint8_t > SegmentedMessageDataCursor::remaining

(

)

const

Contiguous span from current position to end of current segment.

Definition at line 95 of file Common.cpp.

References remainingSegment(), and esi::Segment::span().

remainingSegment()

Segment SegmentedMessageDataCursor::remainingSegment

(

)

const

The unconsumed part of the current segment, with its region.

data and size match remaining().

Definition at line 99 of file Common.cpp.

References esi::Segment::data, msg, offset, esi::Segment::region, segIdx, and esi::Segment::size.

Referenced by remaining().

Member Data Documentation

msg

const SegmentedMessageData& esi::SegmentedMessageDataCursor::msg

private

Definition at line 291 of file Common.h.

Referenced by advance(), done(), remainingSegment(), and SegmentedMessageDataCursor().

offset

size_t esi::SegmentedMessageDataCursor::offset = 0

private

Definition at line 293 of file Common.h.

Referenced by advance(), and remainingSegment().

segIdx

size_t esi::SegmentedMessageDataCursor::segIdx = 0

private

Definition at line 292 of file Common.h.

Referenced by advance(), done(), and remainingSegment().

---

The documentation for this class was generated from the following files:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/include/esi/Common.h
• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/lib/Common.cpp
