Inheritance diagram for esiaccel.codegen.generator.CppGenerator:

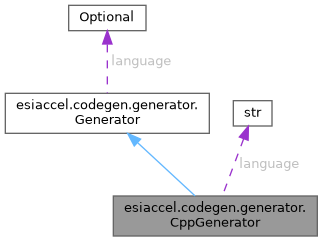

Collaboration diagram for esiaccel.codegen.generator.CppGenerator:

[legend]

Public Member Functions
None	__init__ (self, AcceleratorConnection conn)

str	get_consts_str (self, ModuleInfo module_info)

None	write_modules (self, Path output_dir, str system_name)

None	generate (self, Path output_dir, str system_name)

Public Attributes
	type_planner

	type_emitter

Public Attributes inherited from esiaccel.codegen.generator.Generator
	manifest

Static Public Attributes
str	language = "C++"

Static Public Attributes inherited from esiaccel.codegen.generator.Generator
Optional	language = None

Protected Member Functions
Dict[str, Instance]	_build_module_instance_map (self)

List[Tuple[str, str]]	_port_using_aliases (self, CppPortKind kind, str alias_prefix, types.BundlePort port)

CppPortGroup	_scalar_port_group (self, str member_name, types.BundlePort port, AppID appid)

CppPortGroup	_indexed_ports_group (self, str member_name, str appid_name, List[Tuple[AppID, types.BundlePort]] port_list)

CppPortGroup	_mixed_struct_group (self, str member_name, str appid_name, List[Tuple[AppID, types.BundlePort]] port_list)

List[CppPortGroup]	_collect_port_groups (self, Dict[AppID, types.BundlePort] ports)

None	_emit_module_class (self, str name, str system_name, ModuleInfo module_info, List[CppPortGroup] port_groups, TextIO out)

Static Protected Member Functions
str	_sanitize_id (str name)

str	_appid_expr (AppID appid)

Protected Attributes
	_conn

Detailed Description

Generate C++ headers from an ESI manifest.

Definition at line 41 of file generator.py.

Constructor & Destructor Documentation

◆ init()

None esiaccel.codegen.generator.CppGenerator.__init__	(		self,
		AcceleratorConnection	conn
	)

Reimplemented from esiaccel.codegen.generator.Generator.

Definition at line 46 of file generator.py.

References esiaccel.codegen.generator.CppGenerator.__init__().

Referenced by esiaccel.codegen.generator.CppGenerator.__init__(), synth.LongestPathCollection.drop_non_critical_paths(), and synth.LongestPathCollection.merge().

Member Function Documentation

◆ _appid_expr()

str esiaccel.codegen.generator.CppGenerator._appid_expr ( AppID appid )

staticprotected

Return `esi::AppID(...)` expression for an AppID.

Definition at line 118 of file generator.py.

Referenced by esiaccel.codegen.generator.CppGenerator._mixed_struct_group(), and esiaccel.codegen.generator.CppGenerator._scalar_port_group().

◆ _build_module_instance_map()

Dict[str, Instance] esiaccel.codegen.generator.CppGenerator._build_module_instance_map ( self )

protected

Walk the live hierarchy and return {module_name: first Instance}.

Definition at line 77 of file generator.py.

References esiaccel.codegen.generator.CppGenerator._conn.

Referenced by esiaccel.codegen.generator.CppGenerator.write_modules().

◆ _collect_port_groups()

List[CppPortGroup] esiaccel.codegen.generator.CppGenerator._collect_port_groups	(		self,
		Dict[AppID, types.BundlePort]	ports
	)

protected

Group `ports` (AppID → BundlePort) into CppPortGroup list.

Definition at line 256 of file generator.py.

References esiaccel.codegen.generator.CppGenerator._indexed_ports_group(), esiaccel.codegen.generator.CppGenerator._mixed_struct_group(), esiaccel.codegen.generator.CppGenerator._sanitize_id(), esiaccel.codegen.generator.CppGenerator._scalar_port_group(), and append().

Referenced by esiaccel.codegen.generator.CppGenerator.write_modules().

◆ _emit_module_class()

None esiaccel.codegen.generator.CppGenerator._emit_module_class	(		self,
		str	name,
		str	system_name,
		ModuleInfo	module_info,
		List[CppPortGroup]	port_groups,
		TextIO	out
	)

protected

Emit the full module class to `out`.

Definition at line 301 of file generator.py.

References esiaccel.codegen.generator.CppGenerator.get_consts_str().

Referenced by esiaccel.codegen.generator.CppGenerator.write_modules().

◆ _indexed_ports_group()

CppPortGroup esiaccel.codegen.generator.CppGenerator._indexed_ports_group	(		self,
		str	member_name,
		str	appid_name,
		List[Tuple[AppID, types.BundlePort]]	port_list
	)

protected

Build a CppPortGroup for a same-name, same-type indexed port array.

Definition at line 155 of file generator.py.

References esiaccel.codegen.generator.CppGenerator._port_using_aliases().

Referenced by esiaccel.codegen.generator.CppGenerator._collect_port_groups().

◆ _mixed_struct_group()

CppPortGroup esiaccel.codegen.generator.CppGenerator._mixed_struct_group	(		self,
		str	member_name,
		str	appid_name,
		List[Tuple[AppID, types.BundlePort]]	port_list
	)

protected

Build a CppPortGroup for a same-name, mixed-type indexed port group.

Definition at line 201 of file generator.py.

References esiaccel.codegen.generator.CppGenerator._appid_expr(), and esiaccel.codegen.generator.CppGenerator._port_using_aliases().

Referenced by esiaccel.codegen.generator.CppGenerator._collect_port_groups().

◆ _port_using_aliases()

List[Tuple[str, str]] esiaccel.codegen.generator.CppGenerator._port_using_aliases	(		self,
		CppPortKind	kind,
		str	alias_prefix,
		types.BundlePort	port
	)

protected

Return (alias_name, type_id) pairs to emit as `using` declarations at
module-class scope for the typed-port template parameters.

Definition at line 92 of file generator.py.

References esiaccel.codegen.generator.CppGenerator.type_emitter.

Referenced by esiaccel.codegen.generator.CppGenerator._indexed_ports_group(), esiaccel.codegen.generator.CppGenerator._mixed_struct_group(), and esiaccel.codegen.generator.CppGenerator._scalar_port_group().

◆ _sanitize_id()

str esiaccel.codegen.generator.CppGenerator._sanitize_id ( str name )

staticprotected

Return a C++-safe identifier from an AppID name.

Definition at line 66 of file generator.py.

References isdigit.

Referenced by esiaccel.codegen.generator.CppGenerator._collect_port_groups().

◆ _scalar_port_group()

CppPortGroup esiaccel.codegen.generator.CppGenerator._scalar_port_group	(		self,
		str	member_name,
		types.BundlePort	port,
		AppID	appid
	)

protected

Build a CppPortGroup for a single scalar (non-indexed) port.

Definition at line 126 of file generator.py.

References esiaccel.codegen.generator.CppGenerator._appid_expr(), and esiaccel.codegen.generator.CppGenerator._port_using_aliases().

Referenced by esiaccel.codegen.generator.CppGenerator._collect_port_groups().

◆ generate()

None esiaccel.codegen.generator.CppGenerator.generate	(		self,
		Path	output_dir,
		str	system_name
	)

Reimplemented from esiaccel.codegen.generator.Generator.

Definition at line 482 of file generator.py.

References esiaccel.codegen.generator.CppGenerator.type_emitter, and esiaccel.codegen.generator.CppGenerator.write_modules().

◆ get_consts_str()

str esiaccel.codegen.generator.CppGenerator.get_consts_str	(		self,
		ModuleInfo	module_info
	)

Get the C++ code for a constant in a module.

Definition at line 52 of file generator.py.

Referenced by esiaccel.codegen.generator.CppGenerator._emit_module_class().

◆ write_modules()

None esiaccel.codegen.generator.CppGenerator.write_modules	(		self,
		Path	output_dir,
		str	system_name
	)

Write the C++ header. One for each module in the manifest.

Definition at line 457 of file generator.py.

References esiaccel.codegen.generator.CppGenerator._build_module_instance_map(), esiaccel.codegen.generator.CppGenerator._collect_port_groups(), esiaccel.codegen.generator.CppGenerator._emit_module_class(), esi::backends::cosim::RpcClient::Impl.manifest, esiaccel.accelerator.AcceleratorConnection.manifest(), and esiaccel.codegen.generator.Generator.manifest.

Referenced by esiaccel.codegen.generator.CppGenerator.generate().

Member Data Documentation

◆ _conn

esiaccel.codegen.generator.CppGenerator._conn

protected

Definition at line 48 of file generator.py.

Referenced by esiaccel.codegen.generator.CppGenerator._build_module_instance_map().

◆ language

str esiaccel.codegen.generator.CppGenerator.language = "C++"

static

Definition at line 44 of file generator.py.

◆ type_emitter

esiaccel.codegen.generator.CppGenerator.type_emitter

Definition at line 50 of file generator.py.

Referenced by esiaccel.codegen.generator.CppGenerator._port_using_aliases(), and esiaccel.codegen.generator.CppGenerator.generate().

◆ type_planner

esiaccel.codegen.generator.CppGenerator.type_planner

Definition at line 49 of file generator.py.

The documentation for this class was generated from the following file:

/home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/python/esiaccel/codegen/generator.py
