pytest.CosimPytestConfig Class Reference

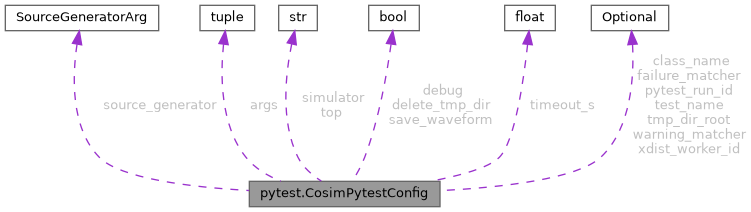

Collaboration diagram for pytest.CosimPytestConfig:

Static Public Attributes
SourceGeneratorArg	source_generator
tuple	args = ("{tmp_dir}",)
str	simulator = "verilator"
str	top = "ESI_Cosim_Top"
bool	debug = False
float	timeout_s = _DEFAULT_TIMEOUT_S
Optional	failure_matcher = _DEFAULT_FAILURE_PATTERN
Optional	warning_matcher = _DEFAULT_WARN_PATTERN
Optional	tmp_dir_root = None
bool	delete_tmp_dir = True
Optional	class_name = None
Optional	test_name = None
Optional	pytest_run_id = None
Optional	xdist_worker_id = None
bool	save_waveform = False

Detailed Description

Immutable configuration for a single cosim test or test class.

Attributes:
  source_generator: Path to the PyCDE hardware generation script, or a
    callable ``(config, tmp_dir) -> sources_dir``.
  args: Arguments passed to the script; ``{tmp_dir}`` is interpolated.
  simulator: Simulator backend name (e.g. ``"verilator"``).
  top: Top-level module name for the simulator.
  debug: If True, enable verbose simulator output.
  timeout_s: Maximum wall-clock seconds before the test is killed.
  failure_matcher: Pattern applied to simulator output to detect errors.
  warning_matcher: Pattern applied to simulator output to detect warnings.
  tmp_dir_root: Root directory for temporary directories. If None, uses system temp.
  delete_tmp_dir: If True, delete temporary directories after test completion.
  class_name: Name of the test class (for class-based tests). None for function tests.
  test_name: Name of the test function or method.
  pytest_run_id: Unique identifier for the pytest run (e.g., "pytest-12345").
  xdist_worker_id: ID of the xdist worker if running under pytest-xdist (e.g., "gw0").
  save_waveform: If True, dump waveform file. Format depends on backend. Requires debug=True.

Definition at line 141 of file pytest.py.

Member Data Documentation

args

tuple pytest.CosimPytestConfig.args = ("{tmp_dir}",)

static

Definition at line 164 of file pytest.py.

class_name

Optional pytest.CosimPytestConfig.class_name = None

static

Definition at line 173 of file pytest.py.

debug

bool pytest.CosimPytestConfig.debug = False

static

Definition at line 167 of file pytest.py.

Referenced by verilator.Verilator._write_cmake(), verilator.Verilator.compile_commands(), questa.Questa.run_command(), and simulator.Simulator.run_proc().

delete_tmp_dir

bool pytest.CosimPytestConfig.delete_tmp_dir = True

static

Definition at line 172 of file pytest.py.

failure_matcher

Optional pytest.CosimPytestConfig.failure_matcher = _DEFAULT_FAILURE_PATTERN

static

Definition at line 169 of file pytest.py.

pytest_run_id

Optional pytest.CosimPytestConfig.pytest_run_id = None

static

Definition at line 175 of file pytest.py.

save_waveform

bool pytest.CosimPytestConfig.save_waveform = False

static

Definition at line 177 of file pytest.py.

Referenced by simulator.Simulator.run_proc().

simulator

str pytest.CosimPytestConfig.simulator = "verilator"

static

Definition at line 165 of file pytest.py.

source_generator

SourceGeneratorArg pytest.CosimPytestConfig.source_generator

static

Definition at line 163 of file pytest.py.

test_name

Optional pytest.CosimPytestConfig.test_name = None

static

Definition at line 174 of file pytest.py.

timeout_s

float pytest.CosimPytestConfig.timeout_s = _DEFAULT_TIMEOUT_S

static

Definition at line 168 of file pytest.py.

tmp_dir_root

Optional pytest.CosimPytestConfig.tmp_dir_root = None

static

Definition at line 171 of file pytest.py.

top

str pytest.CosimPytestConfig.top = "ESI_Cosim_Top"

static

Definition at line 166 of file pytest.py.

warning_matcher

Optional pytest.CosimPytestConfig.warning_matcher = _DEFAULT_WARN_PATTERN

static

Definition at line 170 of file pytest.py.

xdist_worker_id

Optional pytest.CosimPytestConfig.xdist_worker_id = None

static

Definition at line 176 of file pytest.py.

---

The documentation for this class was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/python/esiaccel/cosim/pytest.py
