questa.Questa Class Reference

Inheritance diagram for questa.Questa:

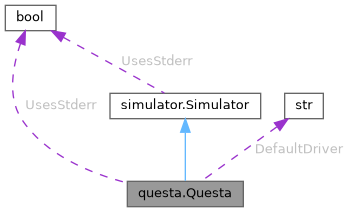

Collaboration diagram for questa.Questa:

Public Member Functions
	__init__ (self, SourceFiles sources, Path run_dir, bool debug, bool save_waveform=False, Optional[Callable[[str], None]] run_stdout_callback=None, Optional[Callable[[str], None]] run_stderr_callback=None, Optional[Callable[[str], None]] compile_stdout_callback=None, Optional[Callable[[str], None]] compile_stderr_callback=None, bool make_default_logs=True, Optional[Dict[str, Optional[str]]] macro_definitions=None, Optional[List[int]] suppressed_questa_errors=None)
List[str]	internal_compile_commands (self)
List[Simulator.CompileStep]	compile_commands (self)
List[str]	run_command (self, bool gui)
int	run (self, str inner_command, bool gui=False, bool server_only=False)
Public Member Functions inherited from simulator.Simulator
	__init__ (self, SourceFiles sources, Path run_dir, bool debug, bool save_waveform=False, Optional[Callable[[str], None]] run_stdout_callback=None, Optional[Callable[[str], None]] run_stderr_callback=None, Optional[Callable[[str], None]] compile_stdout_callback=None, Optional[Callable[[str], None]] compile_stderr_callback=None, bool make_default_logs=True, Optional[Dict[str, Optional[str]]] macro_definitions=None)
int	compile (self)
str	waveform_extension (self)
SimProcess	run_proc (self, bool gui=False)

Public Attributes
	suppressed_questa_errors = suppressed_questa_errors
Public Attributes inherited from simulator.Simulator
	sources = sources
	run_dir = run_dir
	debug = debug
	save_waveform = save_waveform
	macro_definitions = macro_definitions

Static Public Attributes
str	DefaultDriver = CosimCollateralDir / "driver.sv"
Static Public Attributes inherited from simulator.Simulator
	CompileCommand = List[str]
	CompileFunction = Callable[[], Optional[int]]
	CompileStep = Union[CompileCommand, CompileFunction]
bool	UsesStderr = True

Additional Inherited Members
Static Public Member Functions inherited from simulator.Simulator
Dict[str, str]	get_env ()
Protected Member Functions inherited from simulator.Simulator
int	_run_compile_command (self, CompileCommand cmd)
int	_run_compile_step (self, CompileStep step)
int|tuple[subprocess.Popen, List[threading.Thread]]	_start_process_with_callbacks (self, List[str] cmd, Optional[Dict[str, str]] env, Optional[Path] cwd, Optional[Callable[[str], None]] stdout_cb, Optional[Callable[[str], None]] stderr_cb, bool wait)
Protected Attributes inherited from simulator.Simulator
list	_default_files = []
	_compile_stdout_cb
	_compile_stdout_log
	_compile_stderr_cb
	_compile_stderr_log
	_run_stdout_cb
	_run_stdout_log
	_run_stderr_cb
	_run_stderr_log

Detailed Description

Run and compile funcs for Questasim.

Definition at line 12 of file questa.py.

Constructor & Destructor Documentation

__init__()

questa.Questa.__init__	(		self,
		SourceFiles	sources,
		Path	run_dir,
		bool	debug,
		bool	save_waveform = False,
		Optional[Callable[[str], None]]	run_stdout_callback = None,
		Optional[Callable[[str], None]]	run_stderr_callback = None,
		Optional[Callable[[str], None]]	compile_stdout_callback = None,
		Optional[Callable[[str], None]]	compile_stderr_callback = None,
		bool	make_default_logs = True,
		Optional[Dict[str, Optional[str]]]	macro_definitions = None,
		Optional[List[int]]	suppressed_questa_errors = None )

Definition at line 17 of file questa.py.

References __init__().

Referenced by __init__().

Member Function Documentation

compile_commands()

List[Simulator.CompileStep] questa.Questa.compile_commands

(

self

)

Return the compile steps for the simulator.

Each step may be either a shell command (`List[str]`) or a Python callback
(`Callable[[], Optional[int]]`). Python callbacks should return `0` or
`None` on success and a non-zero integer on failure.

Reimplemented from simulator.Simulator.

Definition at line 79 of file questa.py.

References internal_compile_commands().

Referenced by simulator.Simulator.compile().

internal_compile_commands()

List[str] questa.Questa.internal_compile_commands

(

self

)

Definition at line 48 of file questa.py.

References simulator.Simulator.sources.

Referenced by compile_commands().

run()

int questa.Questa.run	(		self,
		str	inner_command,
		bool	gui = False,
		bool	server_only = False )

Override the Simulator.run() to add a link in the run directory (to
the work directory) before running vsim the usual way.

Reimplemented from simulator.Simulator.

Definition at line 131 of file questa.py.

References run(), and simulator.Simulator.run_dir.

Referenced by run().

run_command()

List[str] questa.Questa.run_command	(		self,
		bool	gui )

Return the command to run the simulation.

Reimplemented from simulator.Simulator.

Definition at line 89 of file questa.py.

Referenced by Python.setup.CustomBuild.run(), setup.CustomBuild.run(), and simulator.Simulator.run_proc().

Member Data Documentation

DefaultDriver

str questa.Questa.DefaultDriver = CosimCollateralDir / "driver.sv"

static

Definition at line 15 of file questa.py.

suppressed_questa_errors

questa.Questa.suppressed_questa_errors = suppressed_questa_errors

Definition at line 43 of file questa.py.

---

The documentation for this class was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/python/esiaccel/cosim/questa.py
