synth.DebugPoint Class Reference

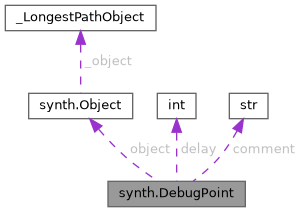

Collaboration diagram for synth.DebugPoint:

Static Public Attributes
Object	object
int	delay
str	comment

Detailed Description

  Represents a debug point in the timing path history.
  Debug points are intermediate points along a timing path that provide
  insight into the delay accumulation and signal propagation through
  the circuit. Each point captures the state at a specific location.
  Attributes:
      object: The signal/object at this debug point
      delay: Accumulated delay up to this point (in timing units)
      comment: Optional descriptive comment about this point

Definition at line 100 of file synth.py.

Member Data Documentation

comment

str synth.DebugPoint.comment

static

Definition at line 114 of file synth.py.

Referenced by circt::synth::DebugPoint.print(), and toJSON().

delay

int synth.DebugPoint.delay

static

Definition at line 113 of file synth.py.

Referenced by circt::synth::DebugPoint.print(), toJSON(), and LocalVisitor.visit().

object

Object synth.DebugPoint.object

static

Definition at line 112 of file synth.py.

Referenced by toJSON().

---

The documentation for this class was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Bindings/Python/dialects/synth.py
