ExtmoduleConventionRemover Struct Reference

Reduction that removes the convention attribute from external modules. More...

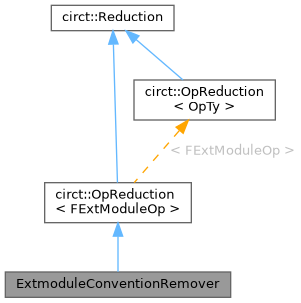

Inheritance diagram for ExtmoduleConventionRemover:

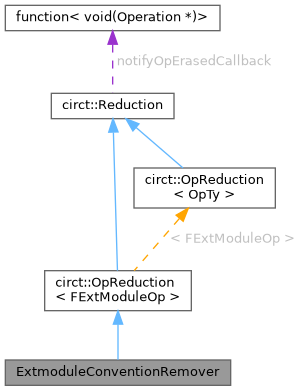

Collaboration diagram for ExtmoduleConventionRemover:

Public Member Functions
uint64_t	match (FExtModuleOp extmodule) override
LogicalResult	rewrite (FExtModuleOp extmodule) override
std::string	getName () const override
	Return a human-readable name for this reduction pattern.
bool	acceptSizeIncrease () const override
	Return true if the tool should accept the transformation this reduction performs on the module even if the overall size of the output increases.
bool	isOneShot () const override
	Return true if the tool should not try to reapply this reduction after it has been successful.
Public Member Functions inherited from circt::OpReduction< FExtModuleOp >
void	matches (Operation *op, llvm::function_ref< void(uint64_t, uint64_t)> addMatch) override
	Collect all ways how this reduction can apply to a specific operation.
virtual void	matches (FExtModuleOp op, llvm::function_ref< void(uint64_t, uint64_t)> addMatch)
LogicalResult	rewriteMatches (Operation *op, ArrayRef< uint64_t > matches) override
	Apply a set of matches of this reduction to a specific operation.
virtual LogicalResult	rewriteMatches (FExtModuleOp op, ArrayRef< uint64_t > matches)
Public Member Functions inherited from circt::Reduction
virtual	~Reduction ()
virtual void	beforeReduction (mlir::ModuleOp)
	Called before the reduction is applied to a new subset of operations.
virtual void	afterReduction (mlir::ModuleOp)
	Called after the reduction has been applied to a subset of operations.
void	notifyOpErased (Operation *op)

Additional Inherited Members
Public Attributes inherited from circt::Reduction
std::function< void(Operation *)>	notifyOpErasedCallback = nullptr
	An optional callback for reductions to communicate removal of operations.

Detailed Description

Reduction that removes the convention attribute from external modules.

Definition at line 2586 of file FIRRTLReductions.cpp.

Member Function Documentation

acceptSizeIncrease()

bool ExtmoduleConventionRemover::acceptSizeIncrease ( ) const

inlineoverridevirtual

Return true if the tool should accept the transformation this reduction performs on the module even if the overall size of the output increases.

This can be handy for patterns that reduce the complexity of the IR at the cost of some verbosity.

Reimplemented from circt::Reduction.

Definition at line 2599 of file FIRRTLReductions.cpp.

getName()

std::string ExtmoduleConventionRemover::getName ( ) const

inlineoverridevirtual

Return a human-readable name for this reduction pattern.

Implements circt::Reduction.

Definition at line 2596 of file FIRRTLReductions.cpp.

isOneShot()

bool ExtmoduleConventionRemover::isOneShot ( ) const

inlineoverridevirtual

Return true if the tool should not try to reapply this reduction after it has been successful.

This is useful for reductions whose match() function keeps returning true even after the reduction has reached a fixed-point and no longer performs any change. An example of this are reductions that apply a lowering pass which always applies but may leave the input unmodified.

This is mainly useful in conjunction with returning true from acceptSizeIncrease(). For reductions that don't accept an increase, the module size has to decrease for them to be considered useful, which prevents the tool from getting stuck at a local point where the reduction applies but produces no change in the input. However, reductions that do accept a size increase can get stuck in this local fixed-point as they keep applying to the same operations and the tool keeps accepting the unmodified input as an improvement.

Reimplemented from circt::Reduction.

Definition at line 2600 of file FIRRTLReductions.cpp.

match()

uint64_t ExtmoduleConventionRemover::match ( FExtModuleOp  extmodule )

inlineoverridevirtual

Reimplemented from circt::OpReduction< FExtModuleOp >.

Definition at line 2587 of file FIRRTLReductions.cpp.

rewrite()

LogicalResult ExtmoduleConventionRemover::rewrite ( FExtModuleOp  extmodule )

inlineoverridevirtual

Reimplemented from circt::OpReduction< FExtModuleOp >.

Definition at line 2591 of file FIRRTLReductions.cpp.

---

The documentation for this struct was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/FIRRTL/FIRRTLReductions.cpp
