A reference to a clock/enable value that can also name values which do not exist yet (a planned port, a planned wire). More...

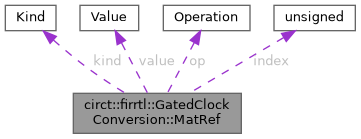

Collaboration diagram for circt::firrtl::GatedClockConversion::MatRef:

[legend]

Public Types
enum class	Kind { None , Direct , InstResult , ModuleArg , PlannedWire , GateEnable }

Public Member Functions
	MatRef ()=default
Kind	getKind () const
Value	getValue () const
unsigned	getIndex () const
Operation *	getOp () const
ClockGateIntrinsicOp	gate () const
void	print (llvm::raw_ostream &os) const

Static Public Member Functions
static MatRef	direct (Value v)
static MatRef	instResult (FInstanceLike inst, unsigned index)
static MatRef	moduleArg (FModuleOp mod, unsigned index)
static MatRef	plannedWire (unsigned index)
static MatRef	gateEnable (ClockGateIntrinsicOp gate)
static MatRef	of (Value v)
	Instance results become symbolic refs, every other value is stable.

Static Private Member Functions
static MatRef	opRef (Kind kind, Operation *op, unsigned index)

Private Attributes
Kind	kind = Kind::None
Value	value
	Direct only.
Operation *	op = nullptr
	Instance / module / gate, by kind.
unsigned	index = 0
	Result, argument or wire index.

Detailed Description

A reference to a clock/enable value that can also name values which do not exist yet (a planned port, a planned wire).

Inserting a port re-creates every instance of a module, so instance results are the only values applyPlan() invalidates. Hence the rule this class enforces: name them symbolically as (instance, resultIndex), never raw.

Definition at line 73 of file GatedClockConversion.h.

Member Enumeration Documentation

◆ Kind

enum class circt::firrtl::GatedClockConversion::MatRef::Kind

strong

Enumerator
None	Null reference, e.g. "no enable".
Direct	A Value that applyPlan() never invalidates.
InstResult	Result index of an instance (existing or planned port).
ModuleArg	Block argument index of a module (existing or planned).
PlannedWire	Entry index of plannedWireValues.
GateEnable	gate.enable \| gate.test_enable, lowered on demand.

Definition at line 75 of file GatedClockConversion.h.

Constructor & Destructor Documentation

◆ MatRef()

circt::firrtl::GatedClockConversion::MatRef::MatRef ( )

default

Referenced by direct(), gateEnable(), instResult(), moduleArg(), of(), opRef(), and plannedWire().

Member Function Documentation

◆ direct()

MatRef circt::firrtl::GatedClockConversion::MatRef::direct ( Value v )

inlinestatic

Definition at line 86 of file GatedClockConversion.h.

References assert(), Direct, kind, MatRef(), and value.

Referenced by of().

◆ gate()

ClockGateIntrinsicOp circt::firrtl::GatedClockConversion::MatRef::gate ( ) const

inline

Definition at line 121 of file GatedClockConversion.h.

References op.

Referenced by gateEnable(), and circt::firrtl::GatedClockConversion::resolve().

◆ gateEnable()

MatRef circt::firrtl::GatedClockConversion::MatRef::gateEnable ( ClockGateIntrinsicOp gate )

inlinestatic

Definition at line 104 of file GatedClockConversion.h.

References gate(), GateEnable, MatRef(), and opRef().

Referenced by circt::firrtl::GatedClockConversion::planGate().

◆ getIndex()

unsigned circt::firrtl::GatedClockConversion::MatRef::getIndex ( ) const

inline

Definition at line 119 of file GatedClockConversion.h.

References index.

Referenced by circt::firrtl::GatedClockConversion::resolve().

◆ getKind()

Kind circt::firrtl::GatedClockConversion::MatRef::getKind ( ) const

inline

Definition at line 117 of file GatedClockConversion.h.

References kind.

Referenced by circt::firrtl::GatedClockConversion::resolve().

◆ getOp()

Operation * circt::firrtl::GatedClockConversion::MatRef::getOp ( ) const

inline

Definition at line 120 of file GatedClockConversion.h.

References op.

Referenced by circt::firrtl::GatedClockConversion::resolve().

◆ getValue()

Value circt::firrtl::GatedClockConversion::MatRef::getValue ( ) const

inline

Definition at line 118 of file GatedClockConversion.h.

References value.

Referenced by circt::firrtl::GatedClockConversion::resolve().

◆ instResult()

MatRef circt::firrtl::GatedClockConversion::MatRef::instResult	(	FInstanceLike	inst,
		unsigned	index )

inlinestatic

Definition at line 95 of file GatedClockConversion.h.

References index, InstResult, MatRef(), and opRef().

Referenced by of(), and circt::firrtl::GatedClockConversion::planInstancePort().

◆ moduleArg()

MatRef circt::firrtl::GatedClockConversion::MatRef::moduleArg	(	FModuleOp	mod,
		unsigned	index )

inlinestatic

Definition at line 98 of file GatedClockConversion.h.

References index, MatRef(), ModuleArg, and opRef().

Referenced by circt::firrtl::GatedClockConversion::planInstancePort().

◆ of()

MatRef circt::firrtl::GatedClockConversion::MatRef::of ( Value v )

inlinestatic

Instance results become symbolic refs, every other value is stable.

Definition at line 109 of file GatedClockConversion.h.

References direct(), instResult(), and MatRef().

Referenced by circt::firrtl::GatedClockConversion::plan(), circt::firrtl::GatedClockConversion::planGate(), and circt::firrtl::GatedClockConversion::planInstancePort().

◆ opRef()

MatRef circt::firrtl::GatedClockConversion::MatRef::opRef	(	Kind	kind,
		Operation *	op,
		unsigned	index )

inlinestaticprivate

Definition at line 126 of file GatedClockConversion.h.

References index, kind, MatRef(), and op.

Referenced by gateEnable(), instResult(), moduleArg(), and plannedWire().

◆ plannedWire()

MatRef circt::firrtl::GatedClockConversion::MatRef::plannedWire ( unsigned index )

inlinestatic

Definition at line 101 of file GatedClockConversion.h.

References index, MatRef(), opRef(), and PlannedWire.

Referenced by circt::firrtl::GatedClockConversion::planAlias().

◆ print()

void GatedClockConversion::MatRef::print ( llvm::raw_ostream & os ) const

Definition at line 96 of file GatedClockConversion.cpp.

References Direct, GateEnable, index, InstResult, kind, ModuleArg, None, op, PlannedWire, and value.

Member Data Documentation

◆ index

unsigned circt::firrtl::GatedClockConversion::MatRef::index = 0

private

Result, argument or wire index.

Definition at line 137 of file GatedClockConversion.h.

Referenced by getIndex(), instResult(), moduleArg(), opRef(), plannedWire(), and print().

◆ kind

Kind circt::firrtl::GatedClockConversion::MatRef::kind = Kind::None

private

Definition at line 134 of file GatedClockConversion.h.

Referenced by direct(), getKind(), opRef(), and print().

◆ op

Operation* circt::firrtl::GatedClockConversion::MatRef::op = nullptr

private

Instance / module / gate, by kind.

Definition at line 136 of file GatedClockConversion.h.

Referenced by gate(), getOp(), opRef(), and print().

◆ value

Value circt::firrtl::GatedClockConversion::MatRef::value

private

Direct only.

Definition at line 135 of file GatedClockConversion.h.

Referenced by direct(), getValue(), synth.Object::is_output_port(), print(), and Python.support.OpOperand::type().

The documentation for this class was generated from the following files:

/home/runner/work/circt-www/circt-www/circt_src/include/circt/Dialect/FIRRTL/GatedClockConversion.h
/home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/FIRRTL/GatedClockConversion.cpp
