This class represents a text file containing one or more Verilog documents. More...

#include <VerilogTextFile.h>

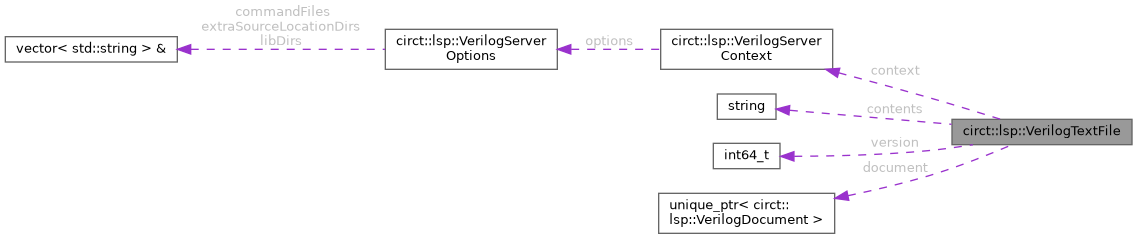

Collaboration diagram for circt::lsp::VerilogTextFile:

[legend]

Public Member Functions
	VerilogTextFile (VerilogServerContext &globalContext, const llvm::lsp::URIForFile &uri, llvm::StringRef fileContents, int64_t version, std::vector< llvm::lsp::Diagnostic > &diagnostics)
	Initialize a new VerilogTextFile and its VerilogDocument.

int64_t	getVersion () const
	Return the current version of this text file.

llvm::LogicalResult	update (const llvm::lsp::URIForFile &uri, int64_t newVersion, llvm::ArrayRef< llvm::lsp::TextDocumentContentChangeEvent > changes, std::vector< llvm::lsp::Diagnostic > &diagnostics)
	Update the file to the new version using the provided set of content changes.

void	getLocationsOf (const llvm::lsp::URIForFile &uri, llvm::lsp::Position defPos, std::vector< llvm::lsp::Location > &locations)
	Return position of definition of an object pointed to by pos.

void	findReferencesOf (const llvm::lsp::URIForFile &uri, llvm::lsp::Position pos, std::vector< llvm::lsp::Location > &references)
	Return all references to an object pointed to by pos.

std::shared_ptr< VerilogDocument >	getDocument ()
	Return document for read access.

void	setDocument (std::shared_ptr< VerilogDocument > newDoc)
	Override document after update.

Private Member Functions
void	initialize (const llvm::lsp::URIForFile &uri, int64_t newVersion, std::vector< llvm::lsp::Diagnostic > &diagnostics)
	Initialize the text file from the given file contents.

void	initializeProjectDriver ()

Private Attributes
VerilogServerContext &	context

std::string	contents
	The full string contents of the file.

std::unique_ptr< slang::driver::Driver >	projectDriver
	The project-scale driver.

std::vector< std::string >	projectIncludeDirectories

std::shared_mutex	contentMutex
	A mutex to control updates of contents.

int64_t	version = 0
	The version of this file.

std::shared_ptr< circt::lsp::VerilogDocument >	document
	The chunks of this file.

std::shared_mutex	docMutex
	A mutex to control updates of document; Acquire AFTER contentMutex.

Detailed Description

This class represents a text file containing one or more Verilog documents.

Definition at line 37 of file VerilogTextFile.h.

Constructor & Destructor Documentation

◆ VerilogTextFile()

VerilogTextFile::VerilogTextFile	(	VerilogServerContext &	globalContext,
		const llvm::lsp::URIForFile &	uri,
		llvm::StringRef	fileContents,
		int64_t	version,
		std::vector< llvm::lsp::Diagnostic > &	diagnostics
	)

Initialize a new VerilogTextFile and its VerilogDocument.

Thread-safe; acquires contentMutex and docMutex.

Definition at line 41 of file VerilogTextFile.cpp.

References contentMutex, initialize(), initializeProjectDriver(), and version.

Member Function Documentation

◆ findReferencesOf()

void VerilogTextFile::findReferencesOf	(	const llvm::lsp::URIForFile &	uri,
		llvm::lsp::Position	pos,
		std::vector< llvm::lsp::Location > &	references
	)

Return all references to an object pointed to by pos.

Thread-safe; acquires docMutex.

Definition at line 153 of file VerilogTextFile.cpp.

References getDocument().

◆ getDocument()

std::shared_ptr< VerilogDocument > VerilogTextFile::getDocument ( )

Return document for read access.

Thread-safe; acquires docMutex.

Definition at line 160 of file VerilogTextFile.cpp.

References docMutex, and document.

Referenced by findReferencesOf(), and getLocationsOf().

◆ getLocationsOf()

void VerilogTextFile::getLocationsOf	(	const llvm::lsp::URIForFile &	uri,
		llvm::lsp::Position	defPos,
		std::vector< llvm::lsp::Location > &	locations
	)

Return position of definition of an object pointed to by pos.

Thread-safe; acquires docMutex.

Definition at line 146 of file VerilogTextFile.cpp.

References getDocument().

◆ getVersion()

int64_t circt::lsp::VerilogTextFile::getVersion ( ) const

inline

Return the current version of this text file.

Thread-safe.

Definition at line 48 of file VerilogTextFile.h.

References version.

◆ initialize()

void VerilogTextFile::initialize	(	const llvm::lsp::URIForFile &	uri,
		int64_t	newVersion,
		std::vector< llvm::lsp::Diagnostic > &	diagnostics
	)

private

Initialize the text file from the given file contents.

NOT thread-safe. ONLY call with contentMutex acquired! Acquires docMutex.

Definition at line 136 of file VerilogTextFile.cpp.

References contents, context, projectDriver, projectIncludeDirectories, setDocument(), and version.

Referenced by update(), and VerilogTextFile().

◆ initializeProjectDriver()

void VerilogTextFile::initializeProjectDriver ( )

private

Definition at line 68 of file VerilogTextFile.cpp.

References circt::lsp::VerilogServerOptions::commandFiles, context, circt::lsp::Logger::error(), circt::lsp::VerilogServerContext::options, projectDriver, and projectIncludeDirectories.

Referenced by VerilogTextFile().

◆ setDocument()

void VerilogTextFile::setDocument ( std::shared_ptr< VerilogDocument > newDoc )

Override document after update.

Thread-safe; acquires docMutex.

Definition at line 165 of file VerilogTextFile.cpp.

References docMutex, and document.

Referenced by initialize().

◆ update()

LogicalResult VerilogTextFile::update	(	const llvm::lsp::URIForFile &	uri,
		int64_t	newVersion,
		llvm::ArrayRef< llvm::lsp::TextDocumentContentChangeEvent >	changes,
		std::vector< llvm::lsp::Diagnostic > &	diagnostics
	)

Update the file to the new version using the provided set of content changes.

Returns failure if the update was unsuccessful. Thread-safe; acquires contentMutex and docMutex.

Definition at line 51 of file VerilogTextFile.cpp.

References contentMutex, contents, circt::lsp::Logger::error(), and initialize().

Member Data Documentation

◆ contentMutex

std::shared_mutex circt::lsp::VerilogTextFile::contentMutex

private

A mutex to control updates of contents.

Acquire BEFORE docMutex.

Definition at line 97 of file VerilogTextFile.h.

Referenced by update(), and VerilogTextFile().

◆ contents

std::string circt::lsp::VerilogTextFile::contents

private

The full string contents of the file.

Definition at line 90 of file VerilogTextFile.h.

Referenced by initialize(), and update().

◆ context

VerilogServerContext& circt::lsp::VerilogTextFile::context

private

Definition at line 87 of file VerilogTextFile.h.

Referenced by initialize(), and initializeProjectDriver().

◆ docMutex

std::shared_mutex circt::lsp::VerilogTextFile::docMutex

private

A mutex to control updates of document; Acquire AFTER contentMutex.

Definition at line 108 of file VerilogTextFile.h.

Referenced by getDocument(), and setDocument().

◆ document

std::shared_ptr<circt::lsp::VerilogDocument> circt::lsp::VerilogTextFile::document

private

The chunks of this file.

The order of these chunks is the order in which they appear in the text file.

Definition at line 104 of file VerilogTextFile.h.

Referenced by getDocument(), and setDocument().

◆ projectDriver

std::unique_ptr<slang::driver::Driver> circt::lsp::VerilogTextFile::projectDriver

private

The project-scale driver.

Definition at line 93 of file VerilogTextFile.h.

Referenced by initialize(), and initializeProjectDriver().

◆ projectIncludeDirectories

std::vector<std::string> circt::lsp::VerilogTextFile::projectIncludeDirectories

private

Definition at line 94 of file VerilogTextFile.h.

Referenced by initialize(), and initializeProjectDriver().

◆ version

int64_t circt::lsp::VerilogTextFile::version = 0

private

The version of this file.

Definition at line 100 of file VerilogTextFile.h.

Referenced by getVersion(), initialize(), and VerilogTextFile().

The documentation for this class was generated from the following files:

/home/runner/work/circt-www/circt-www/circt_src/lib/Tools/circt-verilog-lsp-server/VerilogServerImpl/VerilogTextFile.h
/home/runner/work/circt-www/circt-www/circt_src/lib/Tools/circt-verilog-lsp-server/VerilogServerImpl/VerilogTextFile.cpp
