esi::QueuedDecodeTypeDeserializer< T > Class Template Reference

Helper base class for stateful deserializers which may emit zero, one, or many typed outputs for each raw input message. More...

#include <TypedPorts.h>

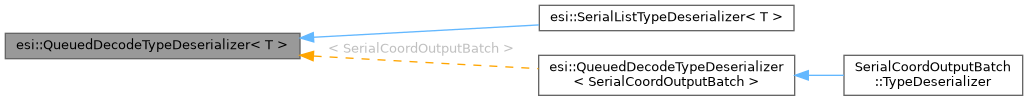

Inheritance diagram for esi::QueuedDecodeTypeDeserializer< T >:

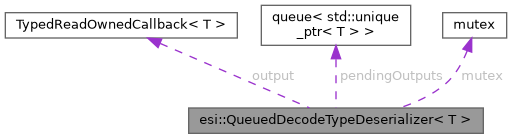

Collaboration diagram for esi::QueuedDecodeTypeDeserializer< T >:

Public Types
using	OutputCallback = detail::TypedReadOwnedCallback< T >
using	DecodedOutputs = std::vector< std::unique_ptr< T > >

Public Member Functions
	QueuedDecodeTypeDeserializer (OutputCallback output)
virtual	~QueuedDecodeTypeDeserializer ()=default
bool	push (std::unique_ptr< SegmentedMessageData > &msg)
	Push one raw message into the deserializer.
bool	poke ()
	Retry delivery of any typed outputs which were previously blocked by the client callback.

Protected Member Functions
virtual DecodedOutputs	decode (std::unique_ptr< SegmentedMessageData > &msg)=0
	Decode one raw message into zero or more typed outputs.

Private Member Functions
bool	pokeLocked ()

Private Attributes
OutputCallback	output
std::queue< std::unique_ptr< T > >	pendingOutputs
std::mutex	mutex

Detailed Description

template<typename T>
class esi::QueuedDecodeTypeDeserializer< T >

Helper base class for stateful deserializers which may emit zero, one, or many typed outputs for each raw input message.

Derived classes implement decode() and must consume the raw input message before returning. This base class handles retrying blocked typed outputs and preserving them in FIFO order until the client accepts them.

Definition at line 246 of file TypedPorts.h.

Member Typedef Documentation

DecodedOutputs

template<typename T >

using esi::QueuedDecodeTypeDeserializer< T >::DecodedOutputs = std::vector<std::unique_ptr<T> >

Definition at line 249 of file TypedPorts.h.

OutputCallback

template<typename T >

using esi::QueuedDecodeTypeDeserializer< T >::OutputCallback = detail::TypedReadOwnedCallback<T>

Definition at line 248 of file TypedPorts.h.

Constructor & Destructor Documentation

QueuedDecodeTypeDeserializer()

template<typename T >

esi::QueuedDecodeTypeDeserializer< T >::QueuedDecodeTypeDeserializer ( OutputCallback  output )

inlineexplicit

Definition at line 251 of file TypedPorts.h.

~QueuedDecodeTypeDeserializer()

template<typename T >

virtual esi::QueuedDecodeTypeDeserializer< T >::~QueuedDecodeTypeDeserializer ( )

virtualdefault

Member Function Documentation

decode()

template<typename T >

virtual DecodedOutputs esi::QueuedDecodeTypeDeserializer< T >::decode ( std::unique_ptr< SegmentedMessageData > &  msg )

protectedpure virtual

Decode one raw message into zero or more typed outputs.

Implementations must consume msg before returning, even when zero outputs are produced.

Implemented in esi::SerialListTypeDeserializer< T >, and SerialCoordOutputBatch::TypeDeserializer.

Referenced by esi::QueuedDecodeTypeDeserializer< T >::push().

poke()

template<typename T >

bool esi::QueuedDecodeTypeDeserializer< T >::poke ( )

inline

Retry delivery of any typed outputs which were previously blocked by the client callback.

Definition at line 291 of file TypedPorts.h.

References esi::QueuedDecodeTypeDeserializer< T >::mutex, and esi::QueuedDecodeTypeDeserializer< T >::pokeLocked().

pokeLocked()

template<typename T >

bool esi::QueuedDecodeTypeDeserializer< T >::pokeLocked ( )

inlineprivate

Definition at line 304 of file TypedPorts.h.

References esi::QueuedDecodeTypeDeserializer< T >::output, and esi::QueuedDecodeTypeDeserializer< T >::pendingOutputs.

Referenced by esi::QueuedDecodeTypeDeserializer< T >::poke(), and esi::QueuedDecodeTypeDeserializer< T >::push().

push()

template<typename T >

bool esi::QueuedDecodeTypeDeserializer< T >::push ( std::unique_ptr< SegmentedMessageData > &  msg )

inline

Push one raw message into the deserializer.

Returns false only when previously decoded typed outputs are still blocked on delivery. In that case msg is left untouched so the caller can retry it later.

Definition at line 261 of file TypedPorts.h.

References esi::QueuedDecodeTypeDeserializer< T >::decode(), esi::QueuedDecodeTypeDeserializer< T >::mutex, esi::QueuedDecodeTypeDeserializer< T >::pendingOutputs, and esi::QueuedDecodeTypeDeserializer< T >::pokeLocked().

Member Data Documentation

mutex

template<typename T >

std::mutex esi::QueuedDecodeTypeDeserializer< T >::mutex

private

Definition at line 319 of file TypedPorts.h.

Referenced by esi::QueuedDecodeTypeDeserializer< T >::poke(), and esi::QueuedDecodeTypeDeserializer< T >::push().

output

template<typename T >

OutputCallback esi::QueuedDecodeTypeDeserializer< T >::output

private

Definition at line 317 of file TypedPorts.h.

Referenced by esi::QueuedDecodeTypeDeserializer< T >::pokeLocked().

pendingOutputs

template<typename T >

std::queue<std::unique_ptr<T> > esi::QueuedDecodeTypeDeserializer< T >::pendingOutputs

private

Definition at line 318 of file TypedPorts.h.

Referenced by esi::QueuedDecodeTypeDeserializer< T >::pokeLocked(), and esi::QueuedDecodeTypeDeserializer< T >::push().

---

The documentation for this class was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/include/esi/TypedPorts.h
