esi::SerialListTypeDeserializer< T > Class Template Reference

Reusable serial-list window deserializer. More...

#include <TypedPorts.h>

Inheritance diagram for esi::SerialListTypeDeserializer< T >:

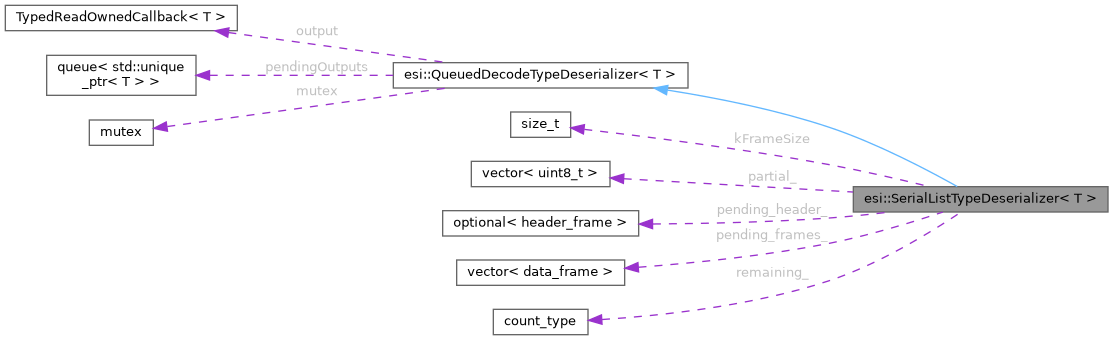

Collaboration diagram for esi::SerialListTypeDeserializer< T >:

Public Types
using	Base = QueuedDecodeTypeDeserializer< T >
using	OutputCallback = typename Base::OutputCallback
using	DecodedOutputs = typename Base::DecodedOutputs
Public Types inherited from esi::QueuedDecodeTypeDeserializer< T >
using	OutputCallback = detail::TypedReadOwnedCallback< T >
using	DecodedOutputs = std::vector< std::unique_ptr< T > >

Public Member Functions
	SerialListTypeDeserializer (OutputCallback output)
Public Member Functions inherited from esi::QueuedDecodeTypeDeserializer< T >
	QueuedDecodeTypeDeserializer (OutputCallback output)
virtual	~QueuedDecodeTypeDeserializer ()=default
bool	push (std::unique_ptr< SegmentedMessageData > &msg)
	Push one raw message into the deserializer.
bool	poke ()
	Retry delivery of any typed outputs which were previously blocked by the client callback.

Private Types
using	header_frame = typename T::header_frame
using	data_frame = typename T::data_frame
using	count_type = typename T::count_type

Private Member Functions
DecodedOutputs	decode (std::unique_ptr< SegmentedMessageData > &msg) override
	Decode one raw message into zero or more typed outputs.

Private Attributes
std::vector< uint8_t >	partial_
std::optional< header_frame >	pending_header_
std::vector< data_frame >	pending_frames_
count_type	remaining_ = 0

Static Private Attributes
static constexpr size_t	kFrameSize = sizeof(data_frame)

Additional Inherited Members

Detailed Description

template<typename T>
class esi::SerialListTypeDeserializer< T >

Reusable serial-list window deserializer.

Walks the serial-list multi-burst protocol used by codegen'd window helpers – zero or more header(N>0) + N data bursts terminated by a header(0) footer – and emits a fully-formed T instance built from the accumulated header fields and data frames.

T must be a generated window helper that exposes:

• nested header_frame / data_frame types of identical size,
• count_type,
• static count_type T::_headerCount(const header_frame &),
• static std::unique_ptr<T> T::_fromFrames(const header_frame &, std::vector<data_frame> &&).

T typically declares SerialListTypeDeserializer<T> as a friend so the template can reach the (private) header_frame definition; the helpers themselves can stay private as well.

Definition at line 340 of file TypedPorts.h.

Member Typedef Documentation

Base

template<typename T >

using esi::SerialListTypeDeserializer< T >::Base = QueuedDecodeTypeDeserializer<T>

Definition at line 342 of file TypedPorts.h.

count_type

template<typename T >

using esi::SerialListTypeDeserializer< T >::count_type = typename T::count_type

private

Definition at line 352 of file TypedPorts.h.

data_frame

template<typename T >

using esi::SerialListTypeDeserializer< T >::data_frame = typename T::data_frame

private

Definition at line 351 of file TypedPorts.h.

DecodedOutputs

template<typename T >

using esi::SerialListTypeDeserializer< T >::DecodedOutputs = typename Base::DecodedOutputs

Definition at line 344 of file TypedPorts.h.

header_frame

template<typename T >

using esi::SerialListTypeDeserializer< T >::header_frame = typename T::header_frame

private

Definition at line 350 of file TypedPorts.h.

OutputCallback

template<typename T >

using esi::SerialListTypeDeserializer< T >::OutputCallback = typename Base::OutputCallback

Definition at line 343 of file TypedPorts.h.

Constructor & Destructor Documentation

SerialListTypeDeserializer()

template<typename T >

esi::SerialListTypeDeserializer< T >::SerialListTypeDeserializer ( OutputCallback  output )

inlineexplicit

Definition at line 346 of file TypedPorts.h.

Member Function Documentation

decode()

template<typename T >

DecodedOutputs esi::SerialListTypeDeserializer< T >::decode ( std::unique_ptr< SegmentedMessageData > &  msg )

inlineoverrideprivatevirtual

Decode one raw message into zero or more typed outputs.

Implementations must consume msg before returning, even when zero outputs are produced.

Implements esi::QueuedDecodeTypeDeserializer< T >.

Definition at line 358 of file TypedPorts.h.

References esi::MessageData::getBytes(), esi::MessageData::getSize(), esi::SerialListTypeDeserializer< T >::kFrameSize, esi::SerialListTypeDeserializer< T >::partial_, esi::SerialListTypeDeserializer< T >::pending_frames_, esi::SerialListTypeDeserializer< T >::pending_header_, and esi::SerialListTypeDeserializer< T >::remaining_.

Member Data Documentation

kFrameSize

template<typename T >

constexpr size_t esi::SerialListTypeDeserializer< T >::kFrameSize = sizeof(data_frame)

staticconstexprprivate

Definition at line 356 of file TypedPorts.h.

Referenced by esi::SerialListTypeDeserializer< T >::decode().

partial_

template<typename T >

std::vector<uint8_t> esi::SerialListTypeDeserializer< T >::partial_

private

Definition at line 414 of file TypedPorts.h.

Referenced by esi::SerialListTypeDeserializer< T >::decode().

pending_frames_

template<typename T >

std::vector<data_frame> esi::SerialListTypeDeserializer< T >::pending_frames_

private

Definition at line 416 of file TypedPorts.h.

Referenced by esi::SerialListTypeDeserializer< T >::decode().

pending_header_

template<typename T >

std::optional<header_frame> esi::SerialListTypeDeserializer< T >::pending_header_

private

Definition at line 415 of file TypedPorts.h.

Referenced by esi::SerialListTypeDeserializer< T >::decode().

remaining_

template<typename T >

count_type esi::SerialListTypeDeserializer< T >::remaining_ = 0

private

Definition at line 417 of file TypedPorts.h.

Referenced by esi::SerialListTypeDeserializer< T >::decode().

---

The documentation for this class was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/include/esi/TypedPorts.h
