esi::UIntView Class Reference

Non-owning view of an unsigned bit vector with toUI64() and implicit conversions to unsigned scalar types. More...

#include <Values.h>

Inheritance diagram for esi::UIntView:

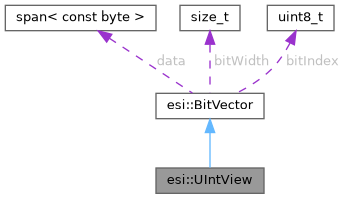

Collaboration diagram for esi::UIntView:

Public Member Functions
	UIntView ()=default
	UIntView (const BitVector &v)
	Adopt an existing view as unsigned.
uint64_t	toUI64 () const
	Convert to a uint64_t, throwing if the value does not fit.
	operator uint64_t () const
	operator uint32_t () const
	operator uint16_t () const
	operator uint8_t () const
	BitVector (std::span< const byte > bytes, std::optional< size_t > width=std::nullopt, uint8_t bitIndex=0)
	Construct from an existing span.
	BitVector ()=default
	BitVector (const BitVector &other)
Public Member Functions inherited from esi::BitVector
	BitVector (std::span< const byte > bytes, std::optional< size_t > width=std::nullopt, uint8_t bitIndex=0)
	Construct from an existing span.
	BitVector ()=default
	BitVector (const BitVector &other)
BitVector &	operator= (const BitVector &other)
size_t	width () const
size_t	size () const
bool	getBit (size_t i) const
	Return the i-th bit (0 = LSB) as boolean.
std::span< const byte >	getSpan () const
	Return a handle to the underlying span.
BitVector	operator>> (size_t n) const
	Logical right shift that drops the least-significant n bits by advancing the byte/bit index and reducing width.
BitVector &	operator>>= (size_t n)
BitVector	slice (size_t offset, size_t sliceWidth) const
	Create a new immutable view of a contiguous bit slice [offset, offset+sliceWidth).
BitVector	lsb (size_t n) const
	Return a view of the N least-significant bits.
BitVector	msb (size_t n) const
	Return a view of the N most-significant bits.
std::string	toString (unsigned base=16) const
bool	operator== (const BitVector &rhs) const
bool	operator!= (const BitVector &rhs) const
bit_iterator	begin () const
	Return an iterator to the first bit (LSB).
bit_iterator	end () const
	Return an iterator past the last bit.

Private Member Functions
template<typename T >
T	toUInt () const

Additional Inherited Members
Public Types inherited from esi::BitVector
using	byte = uint8_t
Protected Member Functions inherited from esi::BitVector
void	checkHighBytesEqual (unsigned lowExclusive, uint8_t expectedByte, const char *fmt, unsigned target) const
Protected Attributes inherited from esi::BitVector
std::span< const byte >	data {}
size_t	bitWidth = 0
uint8_t	bitIndex = 0

Detailed Description

Non-owning view of an unsigned bit vector with toUI64() and implicit conversions to unsigned scalar types.

Adds only static-type tagging and conversion methods on top of BitVector. See the lifetime note on BitVector.

Definition at line 205 of file Values.h.

Constructor & Destructor Documentation

UIntView() [1/2]

esi::UIntView::UIntView ( )

default

UIntView() [2/2]

esi::UIntView::UIntView ( const BitVector &  v )

inline

Adopt an existing view as unsigned.

Cheap (no copy of bytes); the resulting UIntView aliases the same buffer.

Definition at line 211 of file Values.h.

Member Function Documentation

BitVector() [1/3]

esi::BitVector::BitVector ( )

default

BitVector() [2/3]

BitVector::BitVector

(

const BitVector &

other

)

Definition at line 60 of file Values.cpp.

BitVector() [3/3]

BitVector::BitVector	(	std::span< const byte >	bytes,
		std::optional< size_t >	width = std::nullopt,
		uint8_t	bitIndex = 0
	)

Construct from an existing span.

Width defaults to the number of bits in the span (size * 8). The BitVector does not take ownership.

Definition at line 57 of file Values.cpp.

operator uint16_t()

esi::UIntView::operator uint16_t ( ) const

inline

Definition at line 217 of file Values.h.

operator uint32_t()

esi::UIntView::operator uint32_t ( ) const

inline

Definition at line 216 of file Values.h.

operator uint64_t()

esi::UIntView::operator uint64_t ( ) const

inline

Definition at line 215 of file Values.h.

References toUI64().

operator uint8_t()

esi::UIntView::operator uint8_t ( ) const

inline

Definition at line 218 of file Values.h.

toUI64()

uint64_t UIntView::toUI64

(

)

const

Convert to a uint64_t, throwing if the value does not fit.

Definition at line 566 of file Values.cpp.

References esi::BitVector::bitWidth, esi::BitVector::checkHighBytesEqual(), and esi::BitVector::getBit().

Referenced by operator uint64_t(), and toUInt().

toUInt()

template<typename T >

T esi::UIntView::toUInt ( ) const

inlineprivate

Definition at line 222 of file Values.h.

References esi::BitVector::checkHighBytesEqual(), toUI64(), and esi::BitVector::width().

---

The documentation for this class was generated from the following files:

• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/include/esi/Values.h
• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/lib/Values.cpp
