circt::arc::runtime::impl::TraceBuffer Struct Reference

A heap allocated buffer containing raw trace data and time step markers. More...

#include <TraceEncoder.h>

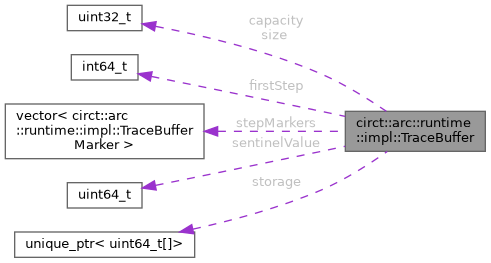

Collaboration diagram for circt::arc::runtime::impl::TraceBuffer:

Public Member Functions
	TraceBuffer ()=delete
	TraceBuffer (uint32_t capacity)
	TraceBuffer (const TraceBuffer &other)=delete
TraceBuffer	operator= (const TraceBuffer &other)=delete
	TraceBuffer (TraceBuffer &&other) noexcept=default
TraceBuffer &	operator= (TraceBuffer &&other) noexcept=default
uint64_t *	getData () const
	Get the pointer to the buffer's storage.
void	clear ()
	Reset the buffer.
void	assertSentinel () const
	Assert that the buffer's sentinel value has not been overwritten.

Public Attributes
uint32_t	capacity
	Available storage in number of elements.
uint32_t	size = 0
	Number of valid elements, set on dispatch.
int64_t	firstStep = -1
	Time step of the buffer's first entry.
uint64_t	firstSimTime = 0
	Simulation time in femtoseconds at the buffer's first entry.
std::vector< TraceBufferMarker >	stepMarkers
	Time step markers.

Private Attributes
std::unique_ptr< uint64_t[]>	storage

Static Private Attributes
static constexpr uint64_t	sentinelValue = UINT64_C(0xABCD1234EFBA8765)

Detailed Description

A heap allocated buffer containing raw trace data and time step markers.

Definition at line 48 of file TraceEncoder.h.

Constructor & Destructor Documentation

TraceBuffer() [1/4]

circt::arc::runtime::impl::TraceBuffer::TraceBuffer ( )

delete

Referenced by operator=(), operator=(), TraceBuffer(), and TraceBuffer().

TraceBuffer() [2/4]

circt::arc::runtime::impl::TraceBuffer::TraceBuffer ( uint32_t capacity )

inlineexplicit

Definition at line 52 of file TraceEncoder.h.

References capacity, sentinelValue, and storage.

TraceBuffer() [3/4]

circt::arc::runtime::impl::TraceBuffer::TraceBuffer ( const TraceBuffer & other )

delete

References TraceBuffer().

TraceBuffer() [4/4]

circt::arc::runtime::impl::TraceBuffer::TraceBuffer ( TraceBuffer && other )

defaultnoexcept

References TraceBuffer().

Member Function Documentation

assertSentinel()

void circt::arc::runtime::impl::TraceBuffer::assertSentinel ( ) const

inline

Assert that the buffer's sentinel value has not been overwritten.

Definition at line 88 of file TraceEncoder.h.

References capacity, circt::arc::runtime::impl::fatalError(), sentinelValue, and storage.

clear()

void circt::arc::runtime::impl::TraceBuffer::clear ( )

inline

Reset the buffer.

Definition at line 80 of file TraceEncoder.h.

References firstSimTime, firstStep, size, and stepMarkers.

getData()

uint64_t * circt::arc::runtime::impl::TraceBuffer::getData ( ) const

inline

Get the pointer to the buffer's storage.

Definition at line 77 of file TraceEncoder.h.

References storage.

Referenced by circt::arc::runtime::impl::FSTTraceEncoder::encode(), and circt::arc::runtime::impl::VCDTraceEncoder::encode().

operator=() [1/2]

TraceBuffer circt::arc::runtime::impl::TraceBuffer::operator= ( const TraceBuffer & other )

delete

References TraceBuffer().

operator=() [2/2]

TraceBuffer & circt::arc::runtime::impl::TraceBuffer::operator= ( TraceBuffer && other )

defaultnoexcept

References TraceBuffer().

Member Data Documentation

capacity

uint32_t circt::arc::runtime::impl::TraceBuffer::capacity

Available storage in number of elements.

Note: Actual capacity is +1 for sentinel

Definition at line 66 of file TraceEncoder.h.

Referenced by assertSentinel(), and TraceBuffer().

firstSimTime

uint64_t circt::arc::runtime::impl::TraceBuffer::firstSimTime = 0

Simulation time in femtoseconds at the buffer's first entry.

Definition at line 72 of file TraceEncoder.h.

Referenced by clear(), circt::arc::runtime::impl::FSTTraceEncoder::encode(), and circt::arc::runtime::impl::VCDTraceEncoder::encode().

firstStep

int64_t circt::arc::runtime::impl::TraceBuffer::firstStep = -1

Time step of the buffer's first entry.

Definition at line 70 of file TraceEncoder.h.

Referenced by clear(), circt::arc::runtime::impl::FSTTraceEncoder::encode(), and circt::arc::runtime::impl::VCDTraceEncoder::encode().

sentinelValue

uint64_t circt::arc::runtime::impl::TraceBuffer::sentinelValue = UINT64_C(0xABCD1234EFBA8765)

staticconstexprprivate

Definition at line 94 of file TraceEncoder.h.

Referenced by assertSentinel(), and TraceBuffer().

size

uint32_t circt::arc::runtime::impl::TraceBuffer::size = 0

Number of valid elements, set on dispatch.

Definition at line 68 of file TraceEncoder.h.

Referenced by clear(), esiaccel.types.ArrayType::deserialize(), circt::arc::runtime::impl::FSTTraceEncoder::encode(), circt::arc::runtime::impl::VCDTraceEncoder::encode(), and esiaccel.types.ArrayType::is_valid().

stepMarkers

std::vector<TraceBufferMarker> circt::arc::runtime::impl::TraceBuffer::stepMarkers

Time step markers.

Definition at line 74 of file TraceEncoder.h.

Referenced by clear(), circt::arc::runtime::impl::FSTTraceEncoder::encode(), and circt::arc::runtime::impl::VCDTraceEncoder::encode().

storage

std::unique_ptr<uint64_t[]> circt::arc::runtime::impl::TraceBuffer::storage

private

Definition at line 95 of file TraceEncoder.h.

Referenced by assertSentinel(), getData(), and TraceBuffer().

---

The documentation for this struct was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/include/circt/Dialect/Arc/Runtime/TraceEncoder.h
