SVMaskNonSynthesizable.cpp File Reference

#include "circt/Dialect/HW/HWOps.h"
#include "circt/Dialect/SV/SVAttributes.h"
#include "circt/Dialect/SV/SVOps.h"
#include "circt/Dialect/SV/SVPasses.h"
#include "circt/Support/Namespace.h"
#include "circt/Support/ProceduralRegionTrait.h"
#include "circt/Support/Utils.h"
#include "mlir/IR/Builders.h"
#include "mlir/Pass/Pass.h"
#include "llvm/ADT/TypeSwitch.h"
#include "circt/Dialect/SV/SVPasses.h.inc"

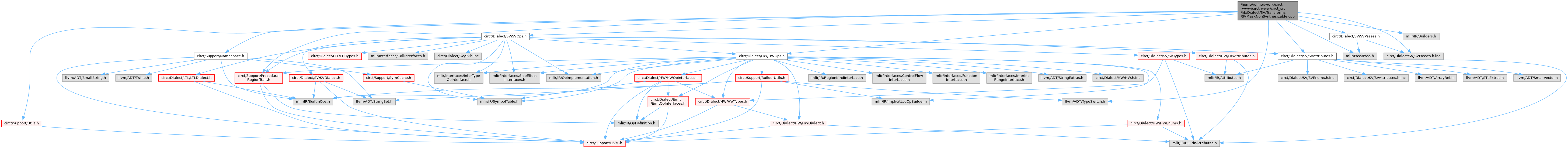

Include dependency graph for SVMaskNonSynthesizable.cpp:

Go to the source code of this file.

Namespaces
namespace	circt
	The InstanceGraph op interface, see InstanceGraphInterface.td for more details.
namespace	circt::sv

Macros
#define	GEN_PASS_DEF_SVMASKNONSYNTHESIZABLE

Functions
static bool	isMaskedOp (Operation *op)
	Returns true if op is one of the SV ops we mask.
static Region *	getMatchingIfDefElseRegion (Operation *op, StringRef expectedMacro)
	If op is an sv.ifdef/sv.ifdef.procedural whose macro matches expectedMacro, returns its else region; otherwise returns nullptr.
static StringAttr	resolveMacroSymName (mlir::ModuleOp moduleOp, StringRef verilogName, bool &created)
	Resolve the symbol name to use for the sv.macro.decl referenced by ifdef mode's sv.ifdef ops.
static void	processBlockDelete (Block &block)
	delete mode: walk the block and erase every masked op.
static void	maskOpByIfdef (Operation *op, StringRef macro)
	Wrap a single masked op in its own sv.ifdef/sv.ifdef.procedural.
static bool	processBlockIfdef (Block &block, StringRef macro)
	ifdef mode: wrap each masked op in its own sv.ifdef/sv.ifdef.procedural.

Macro Definition Documentation

GEN_PASS_DEF_SVMASKNONSYNTHESIZABLE

#define GEN_PASS_DEF_SVMASKNONSYNTHESIZABLE

Definition at line 34 of file SVMaskNonSynthesizable.cpp.

Function Documentation

getMatchingIfDefElseRegion()

static Region * getMatchingIfDefElseRegion ( Operation *  op, StringRef  expectedMacro  )

static

If op is an sv.ifdef/sv.ifdef.procedural whose macro matches expectedMacro, returns its else region; otherwise returns nullptr.

Used to identify the region that need not be re-wrapped in ifdef mode.

Definition at line 56 of file SVMaskNonSynthesizable.cpp.

Referenced by processBlockIfdef().

isMaskedOp()

static bool isMaskedOp ( Operation *  op )

static

Returns true if op is one of the SV ops we mask.

Definition at line 47 of file SVMaskNonSynthesizable.cpp.

Referenced by processBlockDelete(), and processBlockIfdef().

maskOpByIfdef()

static void maskOpByIfdef ( Operation *  op, StringRef  macro  )

static

Wrap a single masked op in its own sv.ifdef/sv.ifdef.procedural.

Picks the procedural variant based on the enclosing region.

Definition at line 100 of file SVMaskNonSynthesizable.cpp.

References circt::isInProceduralRegion().

Referenced by processBlockIfdef().

processBlockDelete()

static void processBlockDelete ( Block &  block )

static

delete mode: walk the block and erase every masked op.

Definition at line 91 of file SVMaskNonSynthesizable.cpp.

References isMaskedOp().

processBlockIfdef()

static bool processBlockIfdef ( Block &  block, StringRef  macro  )

static

ifdef mode: wrap each masked op in its own sv.ifdef/sv.ifdef.procedural.

Recurse into nested regions of non-masked ops, but skip recursion into the else region of a matching sv.ifdef @<macro> – those ops are already guarded.

Definition at line 125 of file SVMaskNonSynthesizable.cpp.

References getMatchingIfDefElseRegion(), isMaskedOp(), maskOpByIfdef(), and processBlockIfdef().

Referenced by processBlockIfdef().

resolveMacroSymName()

static StringAttr resolveMacroSymName ( mlir::ModuleOp  moduleOp, StringRef  verilogName, bool &  created  )

static

Resolve the symbol name to use for the sv.macro.decl referenced by ifdef mode's sv.ifdef ops.

Returns the existing decl's sym_name if a sv.macro.decl whose Verilog identifier matches verilogName already exists at top level; otherwise returns a fresh sym_name that does not collide with any existing top-level symbol (which may differ from verilogName if a non-sv.macro.decl symbol of that name is present). created is set to true iff the returned name belongs to a decl that the caller still needs to materialize.

Definition at line 75 of file SVMaskNonSynthesizable.cpp.

References circt::Namespace::add(), and circt::Namespace::newName().
