#include <ModelInstance.h>

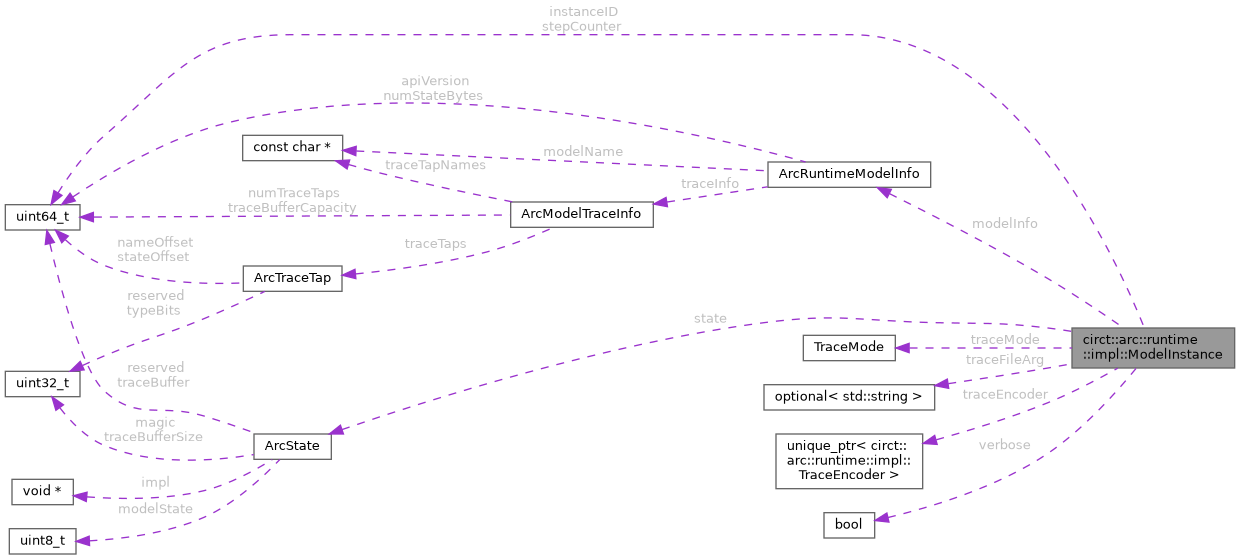

Collaboration diagram for circt::arc::runtime::impl::ModelInstance:

[legend]

Public Member Functions
	ModelInstance ()=delete

	ModelInstance (const ArcRuntimeModelInfo modelInfo, const char args, ArcState *state)

	~ModelInstance ()

const char *	getModelName () const

void	onInitialized (ArcState *mutableState)

void	onEval (ArcState *mutableState)

uint64_t *	swapTraceBuffer ()

Private Types
enum class	TraceMode { DUMMY , VCD , FST }

Private Member Functions
void	parseArgs (const char *args)
	Parse and initialize the instance settings from the given argument string.

std::filesystem::path	getTraceFilePath (const std::string &suffix)
	Get the path to the output trace file.

Private Attributes
const uint64_t	instanceID

const ArcRuntimeModelInfo *const	modelInfo

const ArcState *const	state

std::map< std::string, std::optional< std::string > >	arguments

std::filesystem::path	workDir
	The path to the instance's working directory.

TraceMode	traceMode

std::unique_ptr< TraceEncoder >	traceEncoder

bool	verbose = false

uint64_t	stepCounter = 0

Static Private Attributes
static const std::string	kArgKeyDebug = "debug"
	Enable verbose debug output.

static const std::string	kArgKeyFst = "fst"
	Select FST trace mode.

static const std::string	kArgKeyTraceFile = "traceFile"
	Workdir-relative or absolute path to trace file.

static const std::string	kArgKeyVcd = "vcd"
	Select VCD trace mode.

static const std::string	kArgKeyWorkDir = "workDir"
	Instance's working directory. Absolute or relative to process workdir.

Detailed Description

Definition at line 34 of file ModelInstance.h.

Member Enumeration Documentation

◆ TraceMode

enum class circt::arc::runtime::impl::ModelInstance::TraceMode

strongprivate

Enumerator
DUMMY
VCD
FST

Definition at line 78 of file ModelInstance.h.

Constructor & Destructor Documentation

◆ ModelInstance() [1/2]

circt::arc::runtime::impl::ModelInstance::ModelInstance ( )

delete

◆ ModelInstance() [2/2]

circt::arc::runtime::impl::ModelInstance::ModelInstance	(	const ArcRuntimeModelInfo *	modelInfo,
		const char *	args,
		ArcState *	state
	)

Definition at line 35 of file ModelInstance.cpp.

References DUMMY, FST, getModelName(), getTraceFilePath(), instanceID, modelInfo, parseArgs(), traceEncoder, ArcRuntimeModelInfo::traceInfo, traceMode, VCD, and verbose.

◆ ~ModelInstance()

circt::arc::runtime::impl::ModelInstance::~ModelInstance ( )

Definition at line 92 of file ModelInstance.cpp.

References assert(), getModelName(), ArcState::impl, instanceID, state, stepCounter, traceEncoder, and verbose.

Member Function Documentation

◆ getModelName()

const char * circt::arc::runtime::impl::ModelInstance::getModelName ( ) const

inline

Definition at line 41 of file ModelInstance.h.

References modelInfo, and ArcRuntimeModelInfo::modelName.

Referenced by ModelInstance(), and ~ModelInstance().

◆ getTraceFilePath()

std::filesystem::path circt::arc::runtime::impl::ModelInstance::getTraceFilePath ( const std::string & suffix )

private

Get the path to the output trace file.

Creates a default file name with the given suffix within the working directory if not explicitly set by the runtime arguments.

Definition at line 106 of file ModelInstance.cpp.

References arguments, instanceID, kArgKeyTraceFile, modelInfo, ArcRuntimeModelInfo::modelName, and workDir.

Referenced by ModelInstance().

◆ onEval()

void circt::arc::runtime::impl::ModelInstance::onEval ( ArcState * mutableState )

Definition at line 124 of file ModelInstance.cpp.

References assert(), state, stepCounter, and traceEncoder.

◆ onInitialized()

void circt::arc::runtime::impl::ModelInstance::onInitialized ( ArcState * mutableState )

Definition at line 131 of file ModelInstance.cpp.

References assert(), instanceID, state, traceEncoder, and verbose.

◆ parseArgs()

void circt::arc::runtime::impl::ModelInstance::parseArgs ( const char * args )

private

Parse and initialize the instance settings from the given argument string.

Definition at line 281 of file ModelInstance.cpp.

References arguments, FST, instanceID, kArgKeyDebug, kArgKeyFst, kArgKeyVcd, kArgKeyWorkDir, circt::arc::runtime::impl::parseArgsToMap(), traceMode, VCD, verbose, and workDir.

Referenced by ModelInstance().

◆ swapTraceBuffer()

uint64_t * circt::arc::runtime::impl::ModelInstance::swapTraceBuffer ( )

Definition at line 143 of file ModelInstance.cpp.

References circt::arc::runtime::impl::fatalError(), instanceID, state, ArcState::traceBufferSize, traceEncoder, and verbose.

Member Data Documentation

◆ arguments

std::map<std::string, std::optional<std::string> > circt::arc::runtime::impl::ModelInstance::arguments

private

Definition at line 72 of file ModelInstance.h.

Referenced by getTraceFilePath(), and parseArgs().

◆ instanceID

const uint64_t circt::arc::runtime::impl::ModelInstance::instanceID

private

Definition at line 69 of file ModelInstance.h.

Referenced by getTraceFilePath(), ModelInstance(), onInitialized(), parseArgs(), swapTraceBuffer(), and ~ModelInstance().

◆ kArgKeyDebug

const std::string circt::arc::runtime::impl::ModelInstance::kArgKeyDebug = "debug"

inlinestaticprivate

Enable verbose debug output.

Definition at line 52 of file ModelInstance.h.

Referenced by parseArgs().

◆ kArgKeyFst

const std::string circt::arc::runtime::impl::ModelInstance::kArgKeyFst = "fst"

inlinestaticprivate

Select FST trace mode.

Definition at line 54 of file ModelInstance.h.

Referenced by parseArgs().

◆ kArgKeyTraceFile

const std::string circt::arc::runtime::impl::ModelInstance::kArgKeyTraceFile = "traceFile"

inlinestaticprivate

Workdir-relative or absolute path to trace file.

Definition at line 56 of file ModelInstance.h.

Referenced by getTraceFilePath().

◆ kArgKeyVcd

const std::string circt::arc::runtime::impl::ModelInstance::kArgKeyVcd = "vcd"

inlinestaticprivate

Select VCD trace mode.

Definition at line 58 of file ModelInstance.h.

Referenced by parseArgs().

◆ kArgKeyWorkDir

const std::string circt::arc::runtime::impl::ModelInstance::kArgKeyWorkDir = "workDir"

inlinestaticprivate

Instance's working directory. Absolute or relative to process workdir.

Definition at line 60 of file ModelInstance.h.

Referenced by parseArgs().

◆ modelInfo

const ArcRuntimeModelInfo* const circt::arc::runtime::impl::ModelInstance::modelInfo

private

Definition at line 70 of file ModelInstance.h.

Referenced by getModelName(), getTraceFilePath(), and ModelInstance().

◆ state

const ArcState* const circt::arc::runtime::impl::ModelInstance::state

private

Definition at line 71 of file ModelInstance.h.

Referenced by onEval(), onInitialized(), swapTraceBuffer(), and ~ModelInstance().

◆ stepCounter

uint64_t circt::arc::runtime::impl::ModelInstance::stepCounter = 0

private

Definition at line 82 of file ModelInstance.h.

Referenced by onEval(), and ~ModelInstance().

◆ traceEncoder

std::unique_ptr<TraceEncoder> circt::arc::runtime::impl::ModelInstance::traceEncoder

private

Definition at line 80 of file ModelInstance.h.

Referenced by ModelInstance(), onEval(), onInitialized(), swapTraceBuffer(), and ~ModelInstance().

◆ traceMode

TraceMode circt::arc::runtime::impl::ModelInstance::traceMode

private

Definition at line 79 of file ModelInstance.h.

Referenced by ModelInstance(), and parseArgs().

◆ verbose

bool circt::arc::runtime::impl::ModelInstance::verbose = false

private

Definition at line 81 of file ModelInstance.h.

Referenced by ModelInstance(), onInitialized(), parseArgs(), swapTraceBuffer(), and ~ModelInstance().

◆ workDir

std::filesystem::path circt::arc::runtime::impl::ModelInstance::workDir

private

The path to the instance's working directory.

Matches the process working directory if not provided by a runtime argument.

Definition at line 75 of file ModelInstance.h.

Referenced by getTraceFilePath(), and parseArgs().

The documentation for this class was generated from the following files:

/home/runner/work/circt-www/circt-www/circt_src/include/circt/Dialect/Arc/Runtime/ModelInstance.h
/home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/Arc/Runtime/ModelInstance.cpp
