Abstract TraceEncoder managing trace buffers and the encoder thread. More...

#include <TraceEncoder.h>

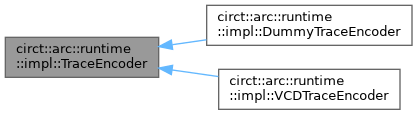

Inheritance diagram for circt::arc::runtime::impl::TraceEncoder:

[legend]

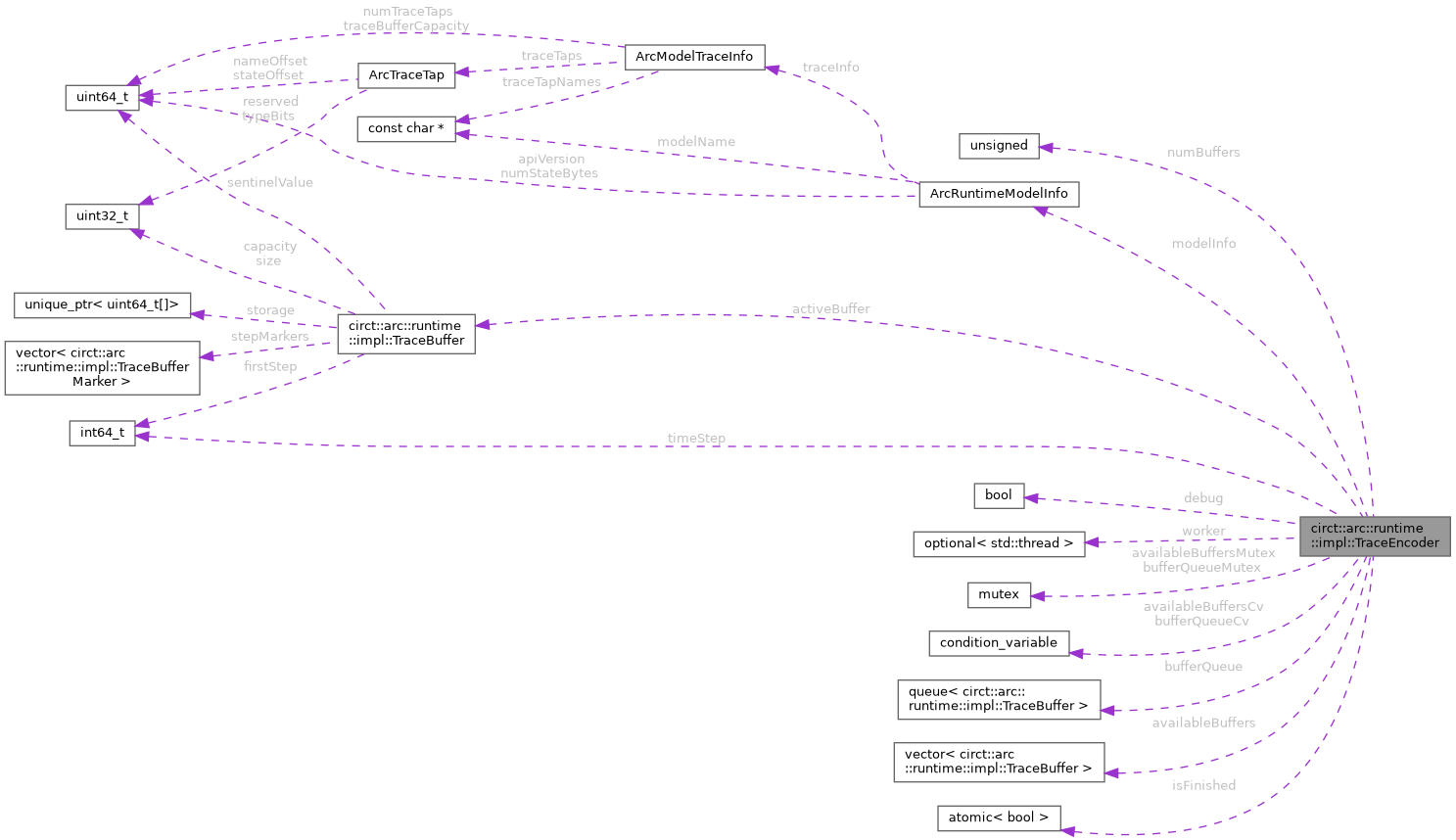

Collaboration diagram for circt::arc::runtime::impl::TraceEncoder:

[legend]

Public Member Functions
	TraceEncoder ()=delete

	TraceEncoder (const ArcRuntimeModelInfo modelInfo, ArcState state, unsigned numBuffers, bool debug)
	Construct a trace encoder for the given model and the given number of buffers.

virtual	~TraceEncoder ()=default

void	run (ArcState *state)
	Begin tracing.

uint64_t *	dispatch (uint32_t oldBufferSize)
	Dispatch the currently active trace buffer containing `oldBufferSize` valid entries to the encoder thread and return the storage of the new active buffer.

void	step (const ArcState *state)
	Signal the start of a new simulation time step.

void	finish (const ArcState *state)
	Stop tracing.

int64_t	getTimeStep () const
	Return the value of the internal step counter.

Public Attributes
const unsigned	numBuffers
	Number of trace buffers in rotation.

Protected Member Functions
virtual bool	initialize (const ArcState *state)=0
	Set-up the encoder before starting the worker thread.

virtual void	startUpWorker ()
	Called by the worker thread before entering the encode loop.

virtual void	encode (TraceBuffer &work)
	Encode the given trace buffer. Called by the worker thread.

virtual void	windDownWorker ()
	Called by the worker thread after leaving the encode loop.

virtual void	finalize (const ArcState *state)
	Finish trace encoding. Called by the simulation thread.

Protected Attributes
const ArcRuntimeModelInfo *const	modelInfo
	Metadata of the traced model.

const bool	debug
	Debug mode flag.

Private Member Functions
void	workLoop ()
	The encoder thread's work loop.

void	enqueueBuffer (TraceBuffer &&buffer)

TraceBuffer	getBuffer ()

Private Attributes
int64_t	timeStep
	Current simulation time step.

uint64_t	simTime
	Current simulation time in femtoseconds.

std::optional< std::thread >	worker
	Trace encoder worker thread. If empty, tracing is disabled.

std::mutex	bufferQueueMutex
	Queue and synchronization primitives for buffers to be processed by the encoder thread.

std::condition_variable	bufferQueueCv

std::queue< TraceBuffer >	bufferQueue

std::mutex	availableBuffersMutex
	Return stack and synchronization primitives for processed buffers.

std::condition_variable	availableBuffersCv

std::vector< TraceBuffer >	availableBuffers

std::atomic< bool >	isFinished
	Flag signaling that no more buffers will be enqueued.

TraceBuffer	activeBuffer
	Trace buffer currently in use by the hardware model.

Detailed Description

Abstract TraceEncoder managing trace buffers and the encoder thread.

Definition at line 99 of file TraceEncoder.h.

Constructor & Destructor Documentation

◆ TraceEncoder() [1/2]

circt::arc::runtime::impl::TraceEncoder::TraceEncoder ( )

delete

◆ TraceEncoder() [2/2]

circt::arc::runtime::impl::TraceEncoder::TraceEncoder	(	const ArcRuntimeModelInfo *	modelInfo,
		ArcState *	state,
		unsigned	numBuffers,
		bool	debug = `false`
	)

Construct a trace encoder for the given model and the given number of buffers.

Initializes the state with the first buffer.

Definition at line 29 of file TraceEncoder.cpp.

References activeBuffer, assert(), availableBuffers, circt::arc::runtime::impl::TraceBuffer::getData(), isFinished, modelInfo, numBuffers, ArcModelTraceInfo::numTraceTaps, simTime, timeStep, ArcState::traceBuffer, ArcModelTraceInfo::traceBufferCapacity, ArcRuntimeModelInfo::traceInfo, and worker.

◆ ~TraceEncoder()

virtual circt::arc::runtime::impl::TraceEncoder::~TraceEncoder ( )

virtualdefault

Member Function Documentation

◆ dispatch()

uint64_t * circt::arc::runtime::impl::TraceEncoder::dispatch ( uint32_t oldBufferSize )

Dispatch the currently active trace buffer containing oldBufferSize valid entries to the encoder thread and return the storage of the new active buffer.

Blocks execution until a new buffer is available.

Definition at line 164 of file TraceEncoder.cpp.

References activeBuffer, circt::arc::runtime::impl::TraceBuffer::assertSentinel(), enqueueBuffer(), circt::arc::runtime::impl::fatalError(), circt::arc::runtime::impl::TraceBuffer::firstSimTime, circt::arc::runtime::impl::TraceBuffer::firstStep, getBuffer(), circt::arc::runtime::impl::TraceBuffer::getData(), simTime, circt::arc::runtime::impl::TraceBuffer::size, timeStep, and worker.

Referenced by finish().

◆ encode()

virtual void circt::arc::runtime::impl::TraceEncoder::encode ( TraceBuffer & work )

inlineprotectedvirtual

Encode the given trace buffer. Called by the worker thread.

Reimplemented in circt::arc::runtime::impl::VCDTraceEncoder.

Definition at line 138 of file TraceEncoder.h.

Referenced by workLoop().

◆ enqueueBuffer()

void circt::arc::runtime::impl::TraceEncoder::enqueueBuffer ( TraceBuffer && buffer )

private

Definition at line 48 of file TraceEncoder.cpp.

References assert(), bufferQueue, bufferQueueCv, bufferQueueMutex, and worker.

Referenced by dispatch().

◆ finalize()

virtual void circt::arc::runtime::impl::TraceEncoder::finalize ( const ArcState * state )

inlineprotectedvirtual

Finish trace encoding. Called by the simulation thread.

Reimplemented in circt::arc::runtime::impl::VCDTraceEncoder.

Definition at line 142 of file TraceEncoder.h.

Referenced by finish().

◆ finish()

void circt::arc::runtime::impl::TraceEncoder::finish ( const ArcState * state )

Stop tracing.

Definition at line 144 of file TraceEncoder.cpp.

References activeBuffer, circt::arc::runtime::impl::TraceBuffer::assertSentinel(), bufferQueueCv, bufferQueueMutex, dispatch(), finalize(), isFinished, ArcState::traceBufferSize, and worker.

◆ getBuffer()

TraceBuffer circt::arc::runtime::impl::TraceEncoder::getBuffer ( )

private

Definition at line 57 of file TraceEncoder.cpp.

References assert(), availableBuffers, availableBuffersCv, availableBuffersMutex, and worker.

Referenced by dispatch().

◆ getTimeStep()

int64_t circt::arc::runtime::impl::TraceEncoder::getTimeStep ( ) const

inline

Return the value of the internal step counter.

Definition at line 122 of file TraceEncoder.h.

References timeStep.

Referenced by circt::arc::runtime::impl::VCDTraceEncoder::finalize().

◆ initialize()

virtual bool circt::arc::runtime::impl::TraceEncoder::initialize ( const ArcState * state )

protectedpure virtual

Set-up the encoder before starting the worker thread.

May return false to indicate failure. In this case, no worker thread will be created. Called by the simulation thread.

Implemented in circt::arc::runtime::impl::DummyTraceEncoder, and circt::arc::runtime::impl::VCDTraceEncoder.

Referenced by run().

◆ run()

void circt::arc::runtime::impl::TraceEncoder::run ( ArcState * state )

Begin tracing.

Definition at line 66 of file TraceEncoder.cpp.

References activeBuffer, assert(), bufferQueue, circt::arc::runtime::impl::TraceBuffer::firstSimTime, circt::arc::runtime::impl::TraceBuffer::firstStep, initialize(), circt::arc::runtime::impl::TraceBuffer::stepMarkers, timeStep, ArcState::traceBufferSize, worker, and workLoop().

◆ startUpWorker()

virtual void circt::arc::runtime::impl::TraceEncoder::startUpWorker ( )

inlineprotectedvirtual

Called by the worker thread before entering the encode loop.

Reimplemented in circt::arc::runtime::impl::VCDTraceEncoder.

Definition at line 136 of file TraceEncoder.h.

Referenced by workLoop().

◆ step()

void circt::arc::runtime::impl::TraceEncoder::step ( const ArcState * state )

Signal the start of a new simulation time step.

Definition at line 118 of file TraceEncoder.cpp.

References activeBuffer, assert(), circt::arc::runtime::impl::TraceBuffer::assertSentinel(), circt::arc::runtime::impl::TraceBuffer::firstSimTime, circt::arc::runtime::impl::TraceBuffer::firstStep, circt::arc::runtime::impl::TraceBuffer::getData(), circt::arc::runtime::impl::readTimeFromState(), simTime, circt::arc::runtime::impl::TraceBuffer::stepMarkers, timeStep, ArcState::traceBuffer, ArcState::traceBufferSize, and worker.

◆ windDownWorker()

virtual void circt::arc::runtime::impl::TraceEncoder::windDownWorker ( )

inlineprotectedvirtual

Called by the worker thread after leaving the encode loop.

Reimplemented in circt::arc::runtime::impl::VCDTraceEncoder.

Definition at line 140 of file TraceEncoder.h.

Referenced by workLoop().

◆ workLoop()

void circt::arc::runtime::impl::TraceEncoder::workLoop ( )

private

The encoder thread's work loop.

Definition at line 83 of file TraceEncoder.cpp.

References assert(), availableBuffers, availableBuffersCv, availableBuffersMutex, bufferQueue, bufferQueueCv, bufferQueueMutex, encode(), isFinished, startUpWorker(), and windDownWorker().

Referenced by run().

Member Data Documentation

◆ activeBuffer

TraceBuffer circt::arc::runtime::impl::TraceEncoder::activeBuffer

private

Trace buffer currently in use by the hardware model.

Definition at line 179 of file TraceEncoder.h.

Referenced by dispatch(), finish(), run(), step(), and TraceEncoder().

◆ availableBuffers

std::vector<TraceBuffer> circt::arc::runtime::impl::TraceEncoder::availableBuffers

private

Definition at line 173 of file TraceEncoder.h.

Referenced by getBuffer(), TraceEncoder(), and workLoop().

◆ availableBuffersCv

std::condition_variable circt::arc::runtime::impl::TraceEncoder::availableBuffersCv

private

Definition at line 172 of file TraceEncoder.h.

Referenced by getBuffer(), and workLoop().

◆ availableBuffersMutex

std::mutex circt::arc::runtime::impl::TraceEncoder::availableBuffersMutex

private

Return stack and synchronization primitives for processed buffers.

Definition at line 171 of file TraceEncoder.h.

Referenced by getBuffer(), and workLoop().

◆ bufferQueue

std::queue<TraceBuffer> circt::arc::runtime::impl::TraceEncoder::bufferQueue

private

Definition at line 168 of file TraceEncoder.h.

Referenced by enqueueBuffer(), run(), and workLoop().

◆ bufferQueueCv

std::condition_variable circt::arc::runtime::impl::TraceEncoder::bufferQueueCv

private

Definition at line 167 of file TraceEncoder.h.

Referenced by enqueueBuffer(), finish(), and workLoop().

◆ bufferQueueMutex

std::mutex circt::arc::runtime::impl::TraceEncoder::bufferQueueMutex

private

Queue and synchronization primitives for buffers to be processed by the encoder thread.

Definition at line 166 of file TraceEncoder.h.

Referenced by enqueueBuffer(), finish(), and workLoop().

◆ debug

const bool circt::arc::runtime::impl::TraceEncoder::debug

protected

Debug mode flag.

Definition at line 147 of file TraceEncoder.h.

Referenced by verilator.Verilator::_write_cmake(), verilator.Verilator::compile_commands(), questa.Questa::run_command(), and simulator.Simulator::run_proc().

◆ isFinished

std::atomic<bool> circt::arc::runtime::impl::TraceEncoder::isFinished

private

Flag signaling that no more buffers will be enqueued.

Definition at line 176 of file TraceEncoder.h.

Referenced by finish(), TraceEncoder(), and workLoop().

◆ modelInfo

const ArcRuntimeModelInfo* const circt::arc::runtime::impl::TraceEncoder::modelInfo

protected

Metadata of the traced model.

Definition at line 145 of file TraceEncoder.h.

Referenced by circt::arc::runtime::impl::VCDTraceEncoder::createHierarchy(), circt::arc::runtime::impl::VCDTraceEncoder::initialize(), circt::arc::runtime::impl::VCDTraceEncoder::initSignalTable(), and TraceEncoder().

◆ numBuffers

const unsigned circt::arc::runtime::impl::TraceEncoder::numBuffers

Number of trace buffers in rotation.

Definition at line 125 of file TraceEncoder.h.

Referenced by TraceEncoder().

◆ simTime

uint64_t circt::arc::runtime::impl::TraceEncoder::simTime

private

Current simulation time in femtoseconds.

Definition at line 159 of file TraceEncoder.h.

Referenced by dispatch(), step(), and TraceEncoder().

◆ timeStep

int64_t circt::arc::runtime::impl::TraceEncoder::timeStep

private

Current simulation time step.

Definition at line 157 of file TraceEncoder.h.

Referenced by dispatch(), getTimeStep(), run(), step(), and TraceEncoder().

◆ worker

std::optional<std::thread> circt::arc::runtime::impl::TraceEncoder::worker

private

Trace encoder worker thread. If empty, tracing is disabled.

Definition at line 162 of file TraceEncoder.h.

Referenced by dispatch(), enqueueBuffer(), finish(), getBuffer(), run(), step(), and TraceEncoder().

The documentation for this class was generated from the following files:

/home/runner/work/circt-www/circt-www/circt_src/include/circt/Dialect/Arc/Runtime/TraceEncoder.h
/home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/Arc/Runtime/TraceEncoder.cpp
