circt::synth::MatchedPattern Class Reference

Represents a cut that has been successfully matched to a rewriting pattern. More...

#include <CutRewriter.h>

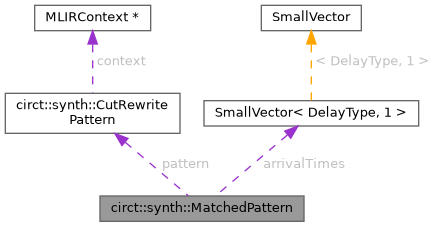

Collaboration diagram for circt::synth::MatchedPattern:

Public Member Functions
	MatchedPattern ()=default
	Default constructor creates an invalid matched pattern.
	MatchedPattern (const CutRewritePattern *pattern, SmallVector< DelayType, 1 > arrivalTimes, double area)
	Constructor for a valid matched pattern.
DelayType	getArrivalTime (unsigned outputIndex) const
	Get the arrival time of signals through this pattern.
ArrayRef< DelayType >	getArrivalTimes () const
DelayType	getWorstOutputArrivalTime () const
const CutRewritePattern *	getPattern () const
	Get the library pattern that was matched.
double	getArea () const
	Get the area cost of using this pattern.

Private Attributes
const CutRewritePattern *	pattern = nullptr
	The matched library pattern.
SmallVector< DelayType, 1 >	arrivalTimes
	Arrival times of outputs from this pattern.
double	area = 0.0
	Area cost of this pattern.

Detailed Description

Represents a cut that has been successfully matched to a rewriting pattern.

This class encapsulates the result of matching a cut against a rewriting pattern during optimization. It stores the matched pattern, the cut that was matched, and timing information needed for optimization.

Definition at line 119 of file CutRewriter.h.

Constructor & Destructor Documentation

MatchedPattern() [1/2]

circt::synth::MatchedPattern::MatchedPattern ( )

default

Default constructor creates an invalid matched pattern.

MatchedPattern() [2/2]

circt::synth::MatchedPattern::MatchedPattern ( const CutRewritePattern *  pattern, SmallVector< DelayType, 1 >  arrivalTimes, double  area  )

inline

Constructor for a valid matched pattern.

Definition at line 131 of file CutRewriter.h.

Member Function Documentation

getArea()

double MatchedPattern::getArea

(

)

const

Get the area cost of using this pattern.

Definition at line 441 of file CutRewriter.cpp.

References area, assert(), and pattern.

getArrivalTime()

DelayType MatchedPattern::getArrivalTime

(

unsigned

outputIndex

)

const

Get the arrival time of signals through this pattern.

Definition at line 431 of file CutRewriter.cpp.

References arrivalTimes, assert(), and pattern.

getArrivalTimes()

ArrayRef< DelayType > MatchedPattern::getArrivalTimes

(

)

const

Definition at line 426 of file CutRewriter.cpp.

References arrivalTimes, assert(), and pattern.

getPattern()

const CutRewritePattern * MatchedPattern::getPattern

(

)

const

Get the library pattern that was matched.

Definition at line 436 of file CutRewriter.cpp.

References assert(), and pattern.

getWorstOutputArrivalTime()

DelayType circt::synth::MatchedPattern::getWorstOutputArrivalTime

(

)

const

Member Data Documentation

area

double circt::synth::MatchedPattern::area = 0.0

private

Area cost of this pattern.

Definition at line 124 of file CutRewriter.h.

Referenced by getArea().

arrivalTimes

SmallVector<DelayType, 1> circt::synth::MatchedPattern::arrivalTimes

private

Arrival times of outputs from this pattern.

Definition at line 123 of file CutRewriter.h.

Referenced by getArrivalTime(), and getArrivalTimes().

pattern

const CutRewritePattern* circt::synth::MatchedPattern::pattern = nullptr

private

The matched library pattern.

Definition at line 121 of file CutRewriter.h.

Referenced by getArea(), getArrivalTime(), getArrivalTimes(), and getPattern().

---

The documentation for this class was generated from the following files:

• /home/runner/work/circt-www/circt-www/circt_src/include/circt/Dialect/Synth/Transforms/CutRewriter.h
• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/Synth/Transforms/CutRewriter.cpp
