Analysis that computes resource usage for Synth dialect operations. More...

#include <ResourceUsageAnalysis.h>

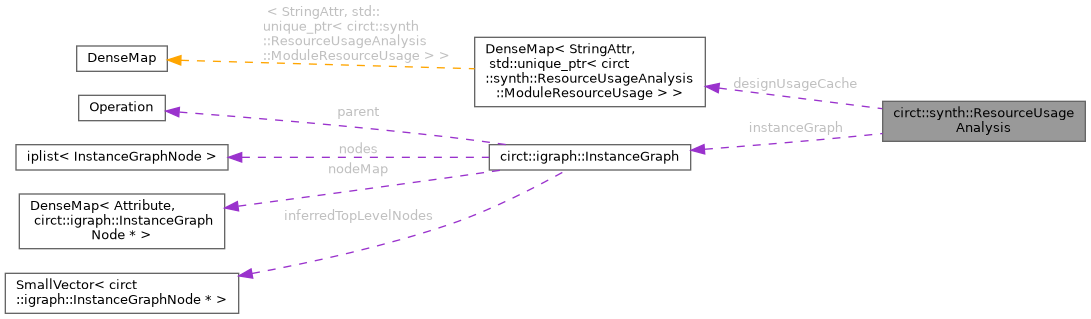

Collaboration diagram for circt::synth::ResourceUsageAnalysis:

[legend]

Classes
struct	ResourceUsage
	Resource usage counts for a set of operations. More...
struct	ModuleResourceUsage
	Resource usage for a single module, including local and total counts. More...

Public Member Functions
	ResourceUsageAnalysis (mlir::Operation *moduleOp, mlir::AnalysisManager &am)
ModuleResourceUsage *	getResourceUsage (igraph::ModuleOpInterface module)
	Get resource usage for a module.
ModuleResourceUsage *	getResourceUsage (StringAttr moduleName)
igraph::InstanceGraph *	getInstanceGraph () const
	Get the instance graph used by this analysis.

Private Attributes
DenseMap< StringAttr, std::unique_ptr< ModuleResourceUsage > >	designUsageCache
	Cache of computed resource usage per module.
igraph::InstanceGraph *	instanceGraph
	Instance graph for module hierarchy traversal.

Detailed Description

Analysis that computes resource usage for Synth dialect operations.

This analysis walks module hierarchies and counts resources such as:

And-inverter graph (AIG)
Truth tables (LUTs)
Sequential elements (DFFs)

Definition at line 36 of file ResourceUsageAnalysis.h.

Constructor & Destructor Documentation

◆ ResourceUsageAnalysis()

ResourceUsageAnalysis::ResourceUsageAnalysis	(	mlir::Operation *	moduleOp,
		mlir::AnalysisManager &	am )

Definition at line 97 of file ResourceUsageAnalysis.cpp.

References instanceGraph, and ResourceUsageAnalysis().

Referenced by ResourceUsageAnalysis().

Member Function Documentation

◆ getInstanceGraph()

igraph::InstanceGraph * circt::synth::ResourceUsageAnalysis::getInstanceGraph ( ) const

inline

Get the instance graph used by this analysis.

Definition at line 90 of file ResourceUsageAnalysis.h.

References instanceGraph.

◆ getResourceUsage() [1/2]

ResourceUsageAnalysis::ModuleResourceUsage * ResourceUsageAnalysis::getResourceUsage ( igraph::ModuleOpInterface module )

Get resource usage for a module.

Definition at line 117 of file ResourceUsageAnalysis.cpp.

References designUsageCache, and instanceGraph.

Referenced by getResourceUsage().

◆ getResourceUsage() [2/2]

ResourceUsageAnalysis::ModuleResourceUsage * ResourceUsageAnalysis::getResourceUsage ( StringAttr moduleName )

Definition at line 102 of file ResourceUsageAnalysis.cpp.

References designUsageCache, getResourceUsage(), and instanceGraph.

Member Data Documentation

◆ designUsageCache

DenseMap<StringAttr, std::unique_ptr<ModuleResourceUsage> > circt::synth::ResourceUsageAnalysis::designUsageCache

private

Cache of computed resource usage per module.

Definition at line 94 of file ResourceUsageAnalysis.h.

Referenced by getResourceUsage(), and getResourceUsage().

◆ instanceGraph

igraph::InstanceGraph* circt::synth::ResourceUsageAnalysis::instanceGraph

private

Instance graph for module hierarchy traversal.

Definition at line 97 of file ResourceUsageAnalysis.h.

Referenced by getInstanceGraph(), getResourceUsage(), getResourceUsage(), and ResourceUsageAnalysis().
