A mutable bit vector that owns its underlying storage. More...

#include <Values.h>

Inheritance diagram for esi::MutableBitVector:

[legend]

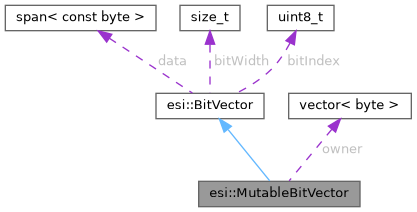

Collaboration diagram for esi::MutableBitVector:

[legend]

Public Member Functions
	MutableBitVector (size_t width)
	Owning, zero-initialized constructor of a given width.
	MutableBitVector (std::vector< byte > &&bytes, std::optional< size_t > width=std::nullopt)
	Owning constructor from an rvalue vector (must move in).
	MutableBitVector ()=default
	MutableBitVector (const MutableBitVector &other)
	MutableBitVector (const BitVector &other)
	MutableBitVector (MutableBitVector &&other) noexcept
	MutableBitVector (BitVector &&other)
MutableBitVector &	operator= (const MutableBitVector &other)
MutableBitVector &	operator= (MutableBitVector &&other) noexcept
void	setBit (size_t i, bool v)
	Set the i-th bit.
std::span< const byte >	getSpan () const
	Return a handle to the underlying span (always aligned since bitIndex=0).
std::vector< uint8_t >	takeStorage ()
	Return and transfer ownership of the underlying storage.
MutableBitVector &	operator>>= (size_t n)
	In-place logical right shift that drops the least-significant n bits.
MutableBitVector &	operator<<= (size_t n)
	In-place logical left shift shifts in n zero bits at LSB, shifting existing bits upward.
MutableBitVector &	operator<<= (const MutableBitVector &other)
	In-place concatenate: appends bits from other to this.
MutableBitVector &	operator\|= (const MutableBitVector &other)
MutableBitVector &	operator&= (const MutableBitVector &other)
MutableBitVector &	operator^= (const MutableBitVector &other)
MutableBitVector	operator~ () const
MutableBitVector	operator\| (const MutableBitVector &other) const
MutableBitVector	operator& (const MutableBitVector &other) const
MutableBitVector	operator^ (const MutableBitVector &other) const
Public Member Functions inherited from esi::BitVector
	BitVector (std::span< const byte > bytes, std::optional< size_t > width=std::nullopt, uint8_t bitIndex=0)
	Construct from an existing span.
	BitVector ()=default
	BitVector (const BitVector &other)
BitVector &	operator= (const BitVector &other)
size_t	width () const
size_t	size () const
bool	getBit (size_t i) const
	Return the i-th bit (0 = LSB) as boolean.
std::span< const byte >	getSpan () const
	Return a handle to the underlying span.
BitVector	operator>> (size_t n) const
	Logical right shift that drops the least-significant n bits by advancing the byte/bit index and reducing width.
BitVector &	operator>>= (size_t n)
BitVector	slice (size_t offset, size_t sliceWidth) const
	Create a new immutable view of a contiguous bit slice [offset, offset+sliceWidth).
BitVector	lsb (size_t n) const
	Return a view of the N least-significant bits.
BitVector	msb (size_t n) const
	Return a view of the N most-significant bits.
std::string	toString (unsigned base=16) const
bool	operator== (const BitVector &rhs) const
bool	operator!= (const BitVector &rhs) const
bit_iterator	begin () const
	Return an iterator to the first bit (LSB).
bit_iterator	end () const
	Return an iterator past the last bit.

Private Attributes
std::vector< byte >	owner

Additional Inherited Members
Public Types inherited from esi::BitVector
using	byte = uint8_t
Protected Member Functions inherited from esi::BitVector
void	checkHighBytesEqual (unsigned lowExclusive, uint8_t expectedByte, const char *fmt, unsigned target) const
Protected Attributes inherited from esi::BitVector
std::span< const byte >	data {}
size_t	bitWidth = 0
uint8_t	bitIndex = 0

Detailed Description

A mutable bit vector that owns its underlying storage.

It supports in-place modifications and mutable operations.

Definition at line 278 of file Values.h.

Constructor & Destructor Documentation

◆ MutableBitVector() [1/7]

MutableBitVector::MutableBitVector ( size_t width )

explicit

Owning, zero-initialized constructor of a given width.

Definition at line 99 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::bitWidth, esi::BitVector::data, owner, and esi::BitVector::width().

Referenced by MutableBitVector(), MutableBitVector(), MutableBitVector(), operator&(), operator&=(), operator<<=(), operator<<=(), operator=(), operator=(), operator>>=(), operator^(), operator^=(), operator|(), operator|=(), and operator~().

◆ MutableBitVector() [2/7]

MutableBitVector::MutableBitVector	(	std::vector< byte > &&	bytes,
		std::optional< size_t >	width = std::nullopt )

Owning constructor from an rvalue vector (must move in).

Definition at line 105 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::bitWidth, esi::BitVector::data, owner, and esi::BitVector::width().

◆ MutableBitVector() [3/7]

esi::MutableBitVector::MutableBitVector ( )

default

References esi::BitVector::BitVector(), and MutableBitVector().

◆ MutableBitVector() [4/7]

MutableBitVector::MutableBitVector ( const MutableBitVector & other )

Definition at line 115 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::BitVector(), esi::BitVector::bitWidth, esi::BitVector::data, MutableBitVector(), and owner.

◆ MutableBitVector() [5/7]

MutableBitVector::MutableBitVector ( const BitVector & other )

Definition at line 122 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::BitVector(), esi::BitVector::bitWidth, esi::BitVector::data, esi::BitVector::getBit(), owner, setBit(), and esi::BitVector::width().

◆ MutableBitVector() [6/7]

MutableBitVector::MutableBitVector ( MutableBitVector && other )

noexcept

Definition at line 144 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::BitVector(), esi::BitVector::bitWidth, esi::BitVector::data, MutableBitVector(), and owner.

◆ MutableBitVector() [7/7]

MutableBitVector::MutableBitVector ( BitVector && other )

Definition at line 133 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::BitVector(), esi::BitVector::bitWidth, esi::BitVector::data, owner, setBit(), and esi::BitVector::width().

Member Function Documentation

◆ getSpan()

std::span< const byte > esi::MutableBitVector::getSpan ( ) const

inline

Return a handle to the underlying span (always aligned since bitIndex=0).

Definition at line 309 of file Values.h.

References esi::BitVector::data.

◆ operator&()

MutableBitVector MutableBitVector::operator& ( const MutableBitVector & other ) const

Definition at line 525 of file Values.cpp.

References esi::BitVector::BitVector(), and MutableBitVector().

◆ operator&=()

MutableBitVector & MutableBitVector::operator&= ( const MutableBitVector & other )

Definition at line 488 of file Values.cpp.

References esi::BitVector::bitWidth, esi::BitVector::getBit(), MutableBitVector(), and setBit().

◆ operator<<=() [1/2]

MutableBitVector & MutableBitVector::operator<<= ( const MutableBitVector & other )

In-place concatenate: appends bits from other to this.

Definition at line 233 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::bitWidth, esi::BitVector::data, esi::BitVector::getBit(), MutableBitVector(), owner, and esi::BitVector::width().

◆ operator<<=() [2/2]

MutableBitVector & MutableBitVector::operator<<= ( size_t n )

In-place logical left shift shifts in n zero bits at LSB, shifting existing bits upward.

Definition at line 211 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::bitWidth, esi::BitVector::data, esi::BitVector::getBit(), MutableBitVector(), and owner.

◆ operator=() [1/2]

MutableBitVector & MutableBitVector::operator= ( const MutableBitVector & other )

Definition at line 154 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::bitWidth, esi::BitVector::data, MutableBitVector(), and owner.

◆ operator=() [2/2]

MutableBitVector & MutableBitVector::operator= ( MutableBitVector && other )

noexcept

Definition at line 165 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::bitWidth, esi::BitVector::data, MutableBitVector(), and owner.

◆ operator>>=()

MutableBitVector & MutableBitVector::operator>>= ( size_t n )

In-place logical right shift that drops the least-significant n bits.

Reduces width and updates internal state. Does not modify underlying storage.

Definition at line 191 of file Values.cpp.

References esi::BitVector::bitIndex, esi::BitVector::bitWidth, esi::BitVector::data, and MutableBitVector().

◆ operator^()

MutableBitVector MutableBitVector::operator^ ( const MutableBitVector & other ) const

Definition at line 532 of file Values.cpp.

References esi::BitVector::BitVector(), and MutableBitVector().

◆ operator^=()

MutableBitVector & MutableBitVector::operator^= ( const MutableBitVector & other )

Definition at line 504 of file Values.cpp.

References esi::BitVector::bitWidth, esi::BitVector::getBit(), MutableBitVector(), and setBit().

◆ operator|()

MutableBitVector MutableBitVector::operator| ( const MutableBitVector & other ) const

Definition at line 518 of file Values.cpp.

References esi::BitVector::BitVector(), and MutableBitVector().

◆ operator|=()

MutableBitVector & MutableBitVector::operator|= ( const MutableBitVector & other )

Definition at line 496 of file Values.cpp.

References esi::BitVector::bitWidth, esi::BitVector::getBit(), MutableBitVector(), and setBit().

◆ operator~()

MutableBitVector MutableBitVector::operator~ ( ) const

Definition at line 511 of file Values.cpp.

References esi::BitVector::bitWidth, esi::BitVector::getBit(), MutableBitVector(), and setBit().

◆ setBit()

void MutableBitVector::setBit	(	size_t	i,
		bool	v )

Set the i-th bit.

Definition at line 178 of file Values.cpp.

References esi::BitVector::bitWidth, and owner.

Referenced by esi::Int::Int(), MutableBitVector(), MutableBitVector(), operator&=(), operator^=(), operator|=(), operator~(), and esi::UInt::UInt().

◆ takeStorage()

std::vector< uint8_t > esi::MutableBitVector::takeStorage ( )

inline

Return and transfer ownership of the underlying storage.

Definition at line 312 of file Values.h.

References owner.

Referenced by esi::BitsType::deserialize().

Member Data Documentation

◆ owner

std::vector<byte> esi::MutableBitVector::owner

private

Definition at line 336 of file Values.h.

Referenced by MutableBitVector(), MutableBitVector(), MutableBitVector(), MutableBitVector(), MutableBitVector(), MutableBitVector(), operator<<=(), operator<<=(), operator=(), operator=(), setBit(), and takeStorage().

The documentation for this class was generated from the following files:

/home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/include/esi/Values.h
/home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/lib/Values.cpp
