esi::UInt Class Reference

#include <Values.h>

Inheritance diagram for esi::UInt:
Inheritance graph
[legend]

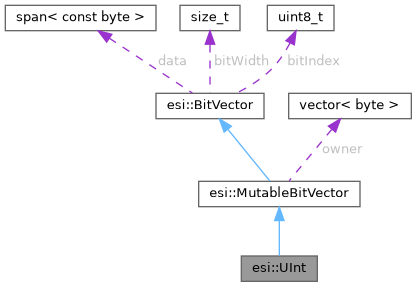

Collaboration diagram for esi::UInt:
Collaboration graph
[legend]

Public Member Functions

 UInt ()=default

 UInt (uint64_t v, unsigned width=64)

 operator uint64_t () const

 operator uint32_t () const

 operator uint16_t () const

 operator uint8_t () const

 MutableBitVector (size_t width)
 Owning, zero-initialized constructor of a given width.

 MutableBitVector (std::vector< byte > &&bytes, std::optional< size_t > width=std::nullopt)
 Owning constructor from an rvalue vector (must move in).

 MutableBitVector ()=default

 MutableBitVector (const MutableBitVector &other)

 MutableBitVector (const BitVector &other)

 MutableBitVector (MutableBitVector &&other) noexcept

 MutableBitVector (BitVector &&other)

- Public Member Functions inherited from esi::MutableBitVector
 MutableBitVector (size_t width)
 Owning, zero-initialized constructor of a given width.

 MutableBitVector (std::vector< byte > &&bytes, std::optional< size_t > width=std::nullopt)
 Owning constructor from an rvalue vector (must move in).

 MutableBitVector ()=default

 MutableBitVector (const MutableBitVector &other)

 MutableBitVector (const BitVector &other)

 MutableBitVector (MutableBitVector &&other) noexcept

 MutableBitVector (BitVector &&other)

MutableBitVectoroperator= (const MutableBitVector &other)

MutableBitVectoroperator= (MutableBitVector &&other) noexcept

void setBit (size_t i, bool v)
 Set the i-th bit.

std::span< const bytegetSpan () const
 Return a handle to the underlying span (always aligned since bitIndex=0).

std::vector< uint8_t > takeStorage ()
 Return and transfer ownership of the underlying storage.

MutableBitVectoroperator>>= (size_t n)
 In-place logical right shift that drops the least-significant n bits.

MutableBitVectoroperator<<= (size_t n)
 In-place logical left shift shifts in n zero bits at LSB, shifting existing bits upward.

MutableBitVectoroperator<<= (const MutableBitVector &other)
 In-place concatenate: appends bits from other to this.

MutableBitVectoroperator|= (const MutableBitVector &other)

MutableBitVectoroperator&= (const MutableBitVector &other)

MutableBitVectoroperator^= (const MutableBitVector &other)

MutableBitVector operator~ () const

MutableBitVector operator| (const MutableBitVector &other) const

MutableBitVector operator& (const MutableBitVector &other) const

MutableBitVector operator^ (const MutableBitVector &other) const

- Public Member Functions inherited from esi::BitVector
 BitVector (std::span< const byte > bytes, std::optional< size_t > width=std::nullopt, uint8_t bitIndex=0)
 Construct from an existing span.

 BitVector ()=default

 BitVector (const BitVector &other)

BitVectoroperator= (const BitVector &other)

size_t width () const

size_t size () const

bool getBit (size_t i) const
 Return the i-th bit (0 = LSB) as boolean.

std::span< const bytegetSpan () const
 Return a handle to the underlying span.

BitVector operator>> (size_t n) const
 Logical right shift that drops the least-significant n bits by advancing the byte/bit index and reducing width.

BitVectoroperator>>= (size_t n)

BitVector slice (size_t offset, size_t sliceWidth) const
 Create a new immutable view of a contiguous bit slice [offset, offset+sliceWidth).

BitVector lsb (size_t n) const
 Return a view of the N least-significant bits.

BitVector msb (size_t n) const
 Return a view of the N most-significant bits.

std::string toString (unsigned base=16) const

bool operator== (const BitVector &rhs) const

bool operator!= (const BitVector &rhs) const

bit_iterator begin () const
 Return an iterator to the first bit (LSB).

bit_iterator end () const
 Return an iterator past the last bit.


Private Member Functions

uint64_t toUI64 () const

template<typename T >
toUInt () const


Static Private Member Functions

static void fits (uint64_t v, unsigned n)


Additional Inherited Members

- Public Types inherited from esi::BitVector
using byte = uint8_t

- Protected Attributes inherited from esi::BitVector
std::span< const bytedata {}

size_t bitWidth = 0

uint8_t bitIndex = 0


Detailed Description

Definition at line 278 of file Values.h.

Constructor & Destructor Documentation

◆ UInt() [1/2]

esi::UInt::UInt ( )
default

◆ UInt() [2/2]

UInt::UInt ( uint64_t  v,
unsigned  width = 64
)

Definition at line 426 of file Values.cpp.

References esi::MutableBitVector::setBit(), and esi::BitVector::width().

Member Function Documentation

◆ fits()

void UInt::fits ( uint64_t  v,
unsigned  n
)
staticprivate

Definition at line 545 of file Values.cpp.

Referenced by toUInt().

◆ MutableBitVector() [1/7]

esi::MutableBitVector::MutableBitVector ( )
default

◆ MutableBitVector() [2/7]

MutableBitVector::MutableBitVector ( BitVector &&  other)

Definition at line 206 of file Values.cpp.

◆ MutableBitVector() [3/7]

MutableBitVector::MutableBitVector ( const BitVector other)

Definition at line 200 of file Values.cpp.

◆ MutableBitVector() [4/7]

MutableBitVector::MutableBitVector ( const MutableBitVector other)

Definition at line 197 of file Values.cpp.

◆ MutableBitVector() [5/7]

MutableBitVector::MutableBitVector ( MutableBitVector &&  other)
noexcept

Definition at line 203 of file Values.cpp.

◆ MutableBitVector() [6/7]

MutableBitVector::MutableBitVector ( size_t  width)
explicit

Owning, zero-initialized constructor of a given width.

Definition at line 188 of file Values.cpp.

◆ MutableBitVector() [7/7]

MutableBitVector::MutableBitVector ( std::vector< byte > &&  bytes,
std::optional< size_t >  width = std::nullopt
)

Owning constructor from an rvalue vector (must move in).

Definition at line 191 of file Values.cpp.

◆ operator uint16_t()

esi::UInt::operator uint16_t ( ) const
inline

Definition at line 285 of file Values.h.

◆ operator uint32_t()

esi::UInt::operator uint32_t ( ) const
inline

Definition at line 284 of file Values.h.

◆ operator uint64_t()

esi::UInt::operator uint64_t ( ) const
inline

Definition at line 283 of file Values.h.

References toUI64().

◆ operator uint8_t()

esi::UInt::operator uint8_t ( ) const
inline

Definition at line 286 of file Values.h.

◆ toUI64()

uint64_t UInt::toUI64 ( ) const
private

Definition at line 531 of file Values.cpp.

References esi::BitVector::bitWidth, and esi::BitVector::getBit().

Referenced by operator uint64_t(), and toUInt().

◆ toUInt()

template<typename T >
T esi::UInt::toUInt ( ) const
inlineprivate

Definition at line 294 of file Values.h.

References fits(), and toUI64().


The documentation for this class was generated from the following files:
