A port which writes data to the accelerator (from_host). More...

#include <Services.h>

Inheritance diagram for esi::services::ChannelService::FromHost:

[legend]

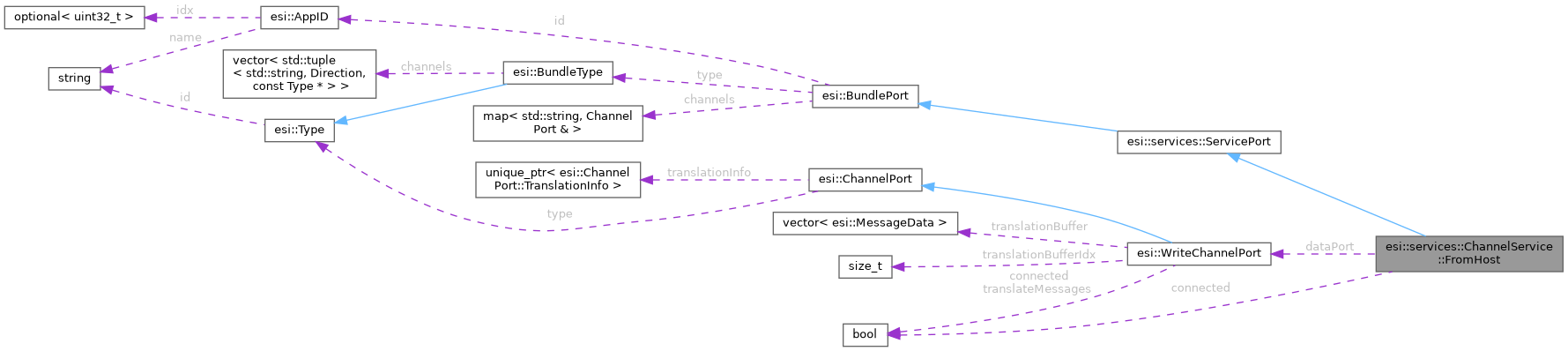

Collaboration diagram for esi::services::ChannelService::FromHost:

[legend]

Public Member Functions
void	connect ()
void	write (const MessageData &data)
virtual std::optional< std::string >	toString (bool oneLine=false) const override
Public Member Functions inherited from esi::services::ServicePort
virtual	~ServicePort ()=default
	BundlePort (AppID id, const BundleType *type, PortMap channels)
	Construct a port.
Public Member Functions inherited from esi::BundlePort
	BundlePort (AppID id, const BundleType *type, PortMap channels)
	Construct a port.
virtual	~BundlePort ()=default
AppID	getID () const
	Get the ID of the port.
WriteChannelPort &	getRawWrite (const std::string &name) const
	Get access to the raw byte streams of a channel.
ReadChannelPort &	getRawRead (const std::string &name) const
const PortMap &	getChannels () const
template<typename T>
T *	getAs () const
	Cast this Bundle port to a subclass which is actually useful.
bool	poll ()
	Calls poll on all channels in the bundle and returns true if any of them returned true.

Static Public Member Functions
static FromHost *	get (AppID id, const BundleType *type, WriteChannelPort &dataPort)
Static Public Member Functions inherited from esi::BundlePort
static bool	isWrite (BundleType::Direction bundleDir)
	Compute the direction of a channel given the bundle direction and the bundle port's direction.

Private Attributes
WriteChannelPort *	dataPort = nullptr
bool	connected = false

Friends
class	ChannelService

Additional Inherited Members
Protected Attributes inherited from esi::BundlePort
AppID	id
const BundleType *	type
PortMap	channels

Detailed Description

A port which writes data to the accelerator (from_host).

Definition at line 347 of file Services.h.

Member Function Documentation

◆ connect()

void ChannelService::FromHost::connect ( )

Definition at line 274 of file Services.cpp.

References esi::BundlePort::channels, connected, dataPort, and esi::BundlePort::getRawWrite().

Referenced by NB_MODULE().

◆ get()

ChannelService::FromHost * ChannelService::FromHost::get	(	AppID	id,
		const BundleType *	type,
		WriteChannelPort &	dataPort )

static

Definition at line 269 of file Services.cpp.

References esi::BundlePort::type.

◆ toString()

virtual std::optional< std::string > esi::services::ChannelService::FromHost::toString ( bool oneLine = false ) const

inlineoverridevirtual

Reimplemented from esi::services::ServicePort.

Definition at line 358 of file Services.h.

References esi::ChannelType::getInner(), esi::Type::toString(), and esi::BundlePort::type.

◆ write()

void ChannelService::FromHost::write ( const MessageData & data )

Definition at line 285 of file Services.cpp.

References connected, and dataPort.

◆ ChannelService

friend class ChannelService

friend

Definition at line 348 of file Services.h.

References ChannelService, dataPort, and esi::BundlePort::type.

Referenced by ChannelService.

Member Data Documentation

◆ connected

bool esi::services::ChannelService::FromHost::connected = false

private

Definition at line 367 of file Services.h.

Referenced by connect(), esiaccel.types.CallbackPort::connect(), esiaccel.types.FromHostPort::connect(), esiaccel.types.FunctionPort::connect(), esiaccel.types.MetricPort::connect(), esiaccel.types.ToHostPort::connect(), and write().

◆ dataPort

WriteChannelPort* esi::services::ChannelService::FromHost::dataPort = nullptr

private

Definition at line 366 of file Services.h.

Referenced by ChannelService, connect(), and write().

The documentation for this class was generated from the following files:

/home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/include/esi/Services.h
/home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/ESI/runtime/cpp/lib/Services.cpp
