#include "circt/Dialect/FIRRTL/FIRRTLDialect.h"
#include "circt/Support/LLVM.h"
#include "circt/Dialect/FIRRTL/FIRRTLEnums.h.inc"

Include dependency graph for FIRRTLEnums.h:

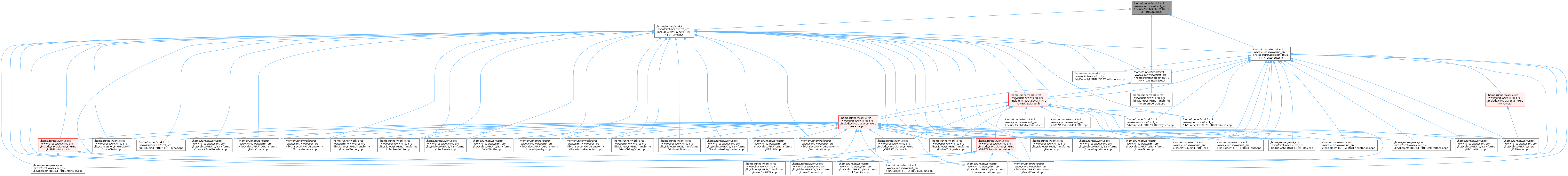

This graph shows which files directly or indirectly include this file:

Namespaces
namespace	circt
	The InstanceGraph op interface, see InstanceGraphInterface.td for more details.

namespace	circt::firrtl

namespace	circt::firrtl::direction

Enumerations
enum class	circt::firrtl::Direction { circt::firrtl::In , circt::firrtl::Out }
	This represents the direction of a single port. More...

Functions
llvm::raw_ostream &	circt::firrtl::operator<< (llvm::raw_ostream &os, const Direction &dir)
	Prints the Direction to the stream as either "in" or "out".

static Direction	circt::firrtl::direction::get (bool isOutput)
	Return an output direction if `isOutput` is true, otherwise return an input direction.

static bool	circt::firrtl::direction::unGet (Direction dir)
	Convert from Direction to bool. The opposite of get;.

Direction	circt::firrtl::direction::flip (Direction direction)
	Flip a port direction.

static StringRef	circt::firrtl::direction::toString (Direction direction)

static StringRef	circt::firrtl::direction::toString (bool direction)

mlir::DenseBoolArrayAttr	circt::firrtl::direction::packAttribute (MLIRContext *context, ArrayRef< Direction > directions)
	Return a `DenseBoolArrayAttr` containing the packed representation of an array of directions.

mlir::DenseBoolArrayAttr	circt::firrtl::direction::packAttribute (MLIRContext *context, ArrayRef< bool > directions)
	Return a `DenseBoolArrayAttr` containing the packed representation of an array of directions.

SmallVector< Direction >	circt::firrtl::direction::unpackAttribute (mlir::DenseBoolArrayAttr directions)
	Turn a packed representation of port attributes into a vector that can be worked with.

Macro Definition Documentation

◆ GET_ATTRDEF_CLASSES

#define GET_ATTRDEF_CLASSES

Definition at line 70 of file FIRRTLEnums.h.
