LinkCircuits.cpp File Reference

#include "circt/Dialect/FIRRTL/FIRRTLAnnotationHelper.h"
#include "circt/Dialect/FIRRTL/FIRRTLAnnotations.h"
#include "circt/Dialect/FIRRTL/FIRRTLOps.h"
#include "circt/Dialect/FIRRTL/FIRRTLTypes.h"
#include "circt/Dialect/FIRRTL/Passes.h"
#include "mlir/IR/Attributes.h"
#include "mlir/IR/Builders.h"
#include "mlir/IR/BuiltinAttributes.h"
#include "mlir/IR/Diagnostics.h"
#include "mlir/IR/Operation.h"
#include "mlir/IR/SymbolTable.h"
#include "mlir/Support/LLVM.h"
#include "llvm/ADT/MapVector.h"
#include "llvm/ADT/STLExtras.h"
#include <iterator>
#include "circt/Dialect/FIRRTL/Passes.h.inc"

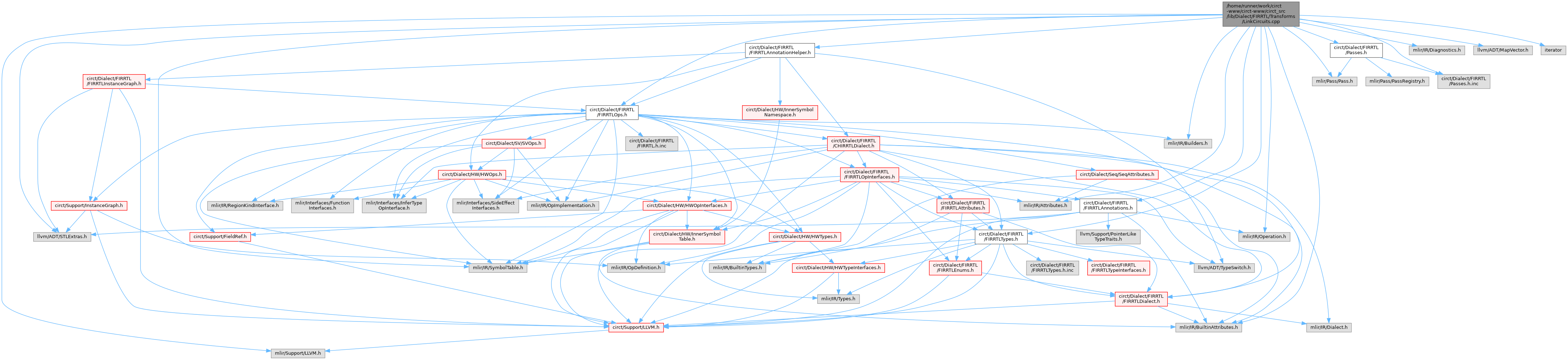

Include dependency graph for LinkCircuits.cpp:

Go to the source code of this file.

Namespaces
namespace	circt
	The InstanceGraph op interface, see InstanceGraphInterface.td for more details.
namespace	circt::firrtl

Macros
#define	GEN_PASS_DEF_LINKCIRCUITS

Functions
template<typename CallableT >
static DictionaryAttr	transformAnnotationTarget (DictionaryAttr anno, CallableT transformTokensFn)
static LogicalResult	mangleCircuitSymbols (CircuitOp circuit)
static void	collectLayerSymbols (LayerOp layer, SmallVectorImpl< FlatSymbolRefAttr > &stack, llvm::DenseSet< Attribute > &layers)
static void	collectLayerSymbols (CircuitOp circuit, llvm::DenseSet< Attribute > &layers)
static LogicalResult	verifyKnownLayers (FExtModuleOp extModule, const llvm::DenseSet< Attribute > &availableLayers)
static LogicalResult	mergeLayer (LayerOp dst, LayerOp src)
static FailureOr< bool >	handleCollidingOps (SymbolOpInterface collidingOp, SymbolOpInterface incomingOp, const llvm::DenseSet< Attribute > &mergedLayers, const llvm::DenseSet< Attribute > &incomingLayers)
	Handles colliding symbols when merging circuits.

Macro Definition Documentation

GEN_PASS_DEF_LINKCIRCUITS

#define GEN_PASS_DEF_LINKCIRCUITS

Definition at line 31 of file LinkCircuits.cpp.

Function Documentation

collectLayerSymbols() [1/2]

static void collectLayerSymbols ( CircuitOp  circuit, llvm::DenseSet< Attribute > &  layers  )

static

Definition at line 168 of file LinkCircuits.cpp.

References collectLayerSymbols().

collectLayerSymbols() [2/2]

static void collectLayerSymbols ( LayerOp  layer, SmallVectorImpl< FlatSymbolRefAttr > &  stack, llvm::DenseSet< Attribute > &  layers  )

static

Definition at line 157 of file LinkCircuits.cpp.

References collectLayerSymbols().

Referenced by collectLayerSymbols(), and collectLayerSymbols().

handleCollidingOps()

static FailureOr< bool > handleCollidingOps ( SymbolOpInterface  collidingOp, SymbolOpInterface  incomingOp, const llvm::DenseSet< Attribute > &  mergedLayers, const llvm::DenseSet< Attribute > &  incomingLayers  )

static

Handles colliding symbols when merging circuits.

This function resolves symbol collisions between operations in different circuits during the linking process. It handles three specific cases:

1. Identical extmodules: When two extmodules have identical attributes, the incoming one is removed as they are duplicates.
2. Extmodule declaration + module definition: When an extmodule (declaration) collides with a module (definition), the declaration is removed in favor of the definition if their attributes match.
3. Extmodule with empty parameters (Zaozi workaround): When two extmodules collide and one has empty parameters, the one without parameters (placeholder declaration) is removed. This handles a limitation in Zaozi's module generation where placeholder extmodule declarations are created from instance ops without knowing the actual parameters or defname.

Parameters

collidingOp	The operation already present in the merged circuit
incomingOp	The operation being added from another circuit

Returns

FailureOr<bool> Returns success with true if incomingOp was erased, success with false if collidingOp was erased, or failure if the collision cannot be resolved

Note

This workaround for empty parameters should ultimately be removed once ODS is updated to properly support placeholder declarations.

Definition at line 246 of file LinkCircuits.cpp.

References mergeLayer(), and verifyKnownLayers().

mangleCircuitSymbols()

static LogicalResult mangleCircuitSymbols ( CircuitOp  circuit )

static

Definition at line 72 of file LinkCircuits.cpp.

References updateType().

mergeLayer()

static LogicalResult mergeLayer ( LayerOp  dst, LayerOp  src  )

static

Definition at line 198 of file LinkCircuits.cpp.

References mergeLayer().

Referenced by handleCollidingOps(), and mergeLayer().

transformAnnotationTarget()

template<typename CallableT >

static DictionaryAttr transformAnnotationTarget ( DictionaryAttr  anno, CallableT  transformTokensFn  )

static

Definition at line 55 of file LinkCircuits.cpp.

verifyKnownLayers()

static LogicalResult verifyKnownLayers ( FExtModuleOp  extModule, const llvm::DenseSet< Attribute > &  availableLayers  )

static

Definition at line 176 of file LinkCircuits.cpp.

Referenced by handleCollidingOps().
