Trace buffer encoder producing an FST file. More...

#include <FSTTraceEncoder.h>

Inheritance diagram for circt::arc::runtime::impl::FSTTraceEncoder:

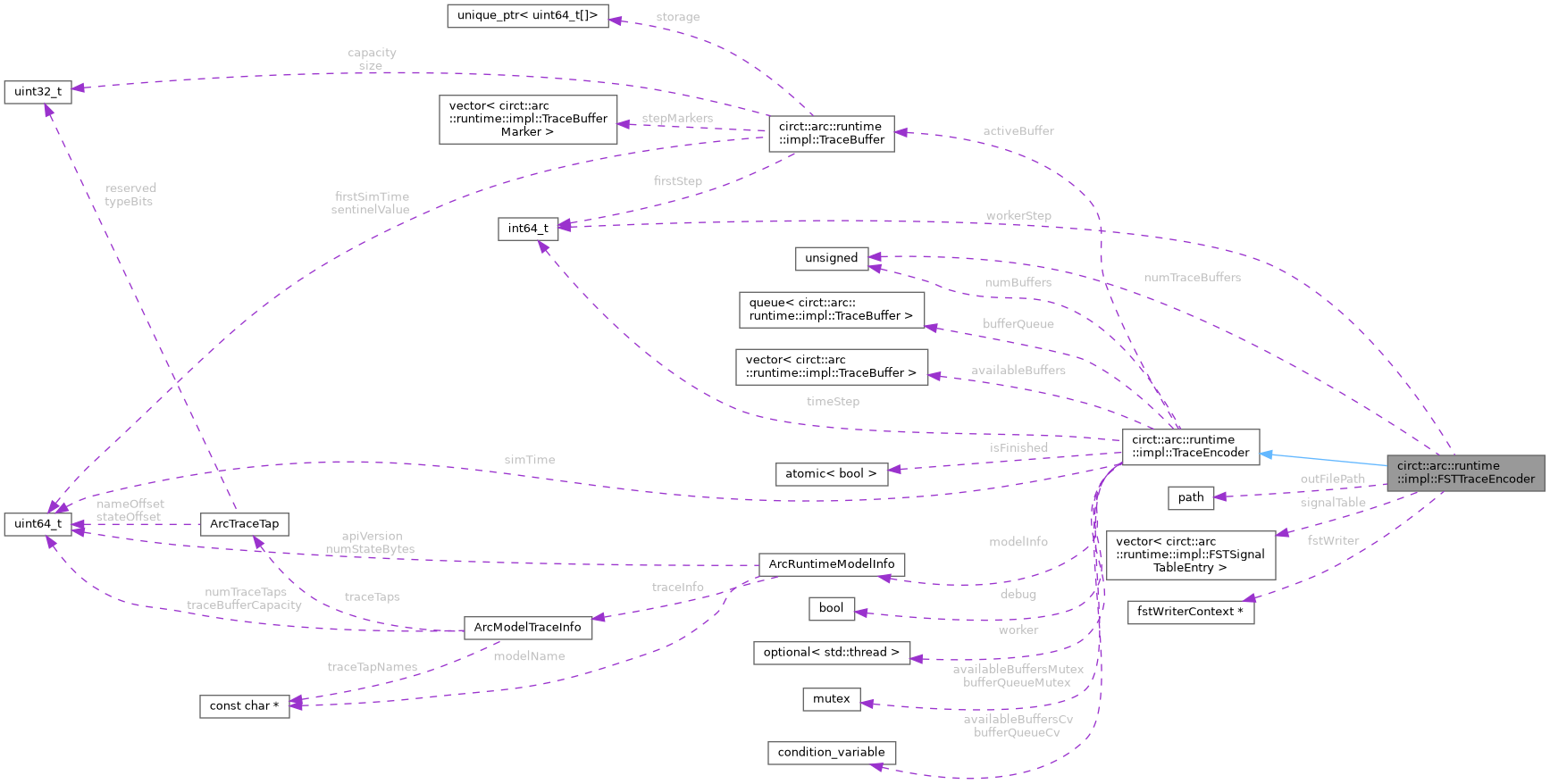

Collaboration diagram for circt::arc::runtime::impl::FSTTraceEncoder:

[legend]

Public Member Functions
	FSTTraceEncoder (const ArcRuntimeModelInfo modelInfo, ArcState state, const std::filesystem::path &outFilePath, bool debug)

Public Member Functions inherited from circt::arc::runtime::impl::TraceEncoder
	TraceEncoder ()=delete

	TraceEncoder (const ArcRuntimeModelInfo modelInfo, ArcState state, unsigned numBuffers, bool debug)
	Construct a trace encoder for the given model and the given number of buffers.

virtual	~TraceEncoder ()=default

void	run (ArcState *state)
	Begin tracing.

uint64_t *	dispatch (uint32_t oldBufferSize)
	Dispatch the currently active trace buffer containing `oldBufferSize` valid entries to the encoder thread and return the storage of the new active buffer.

void	step (const ArcState *state)
	Signal the start of a new simulation time step.

void	finish (const ArcState *state)
	Stop tracing.

int64_t	getTimeStep () const
	Return the value of the internal step counter.

Static Public Attributes
static constexpr unsigned	numTraceBuffers = 4

Protected Member Functions
bool	initialize (const ArcState *state) override
	Set-up the encoder before starting the worker thread.

void	startUpWorker () override
	Called by the worker thread before entering the encode loop.

void	encode (TraceBuffer &work) override
	Encode the given trace buffer. Called by the worker thread.

void	windDownWorker () override
	Called by the worker thread after leaving the encode loop.

void	finalize (const ArcState *state) override
	Finish trace encoding. Called by the simulation thread.

Private Member Functions
void	initSignalTable ()
	Create the table of signals.

void	createHierarchy ()
	Build and dump the signal hierarchy.

Private Attributes
const std::filesystem::path	outFilePath
	Path to the output file.

std::vector< FSTSignalTableEntry >	signalTable
	Table of signals: The index matches their Trace Tap ID.

struct::fstWriterContext *	fstWriter = nullptr
	FST writer context.

int64_t	workerStep
	Current time step of the worker thread.

Additional Inherited Members
Public Attributes inherited from circt::arc::runtime::impl::TraceEncoder
const unsigned	numBuffers
	Number of trace buffers in rotation.

Protected Attributes inherited from circt::arc::runtime::impl::TraceEncoder
const ArcRuntimeModelInfo *const	modelInfo
	Metadata of the traced model.

const bool	debug
	Debug mode flag.

Detailed Description

Trace buffer encoder producing an FST file.

Definition at line 46 of file FSTTraceEncoder.h.

Constructor & Destructor Documentation

◆ FSTTraceEncoder()

circt::arc::runtime::impl::FSTTraceEncoder::FSTTraceEncoder	(	const ArcRuntimeModelInfo *	modelInfo,
		ArcState *	state,
		const std::filesystem::path &	outFilePath,
		bool	debug
	)

Definition at line 60 of file FSTTraceEncoder.cpp.

Member Function Documentation

◆ createHierarchy()

void circt::arc::runtime::impl::FSTTraceEncoder::createHierarchy ( )

private

Build and dump the signal hierarchy.

Definition at line 75 of file FSTTraceEncoder.cpp.

References circt::arc::runtime::impl::appendLegalizedName(), assert(), fstWriter, circt::arc::runtime::impl::TraceEncoder::modelInfo, signalTable, and ArcRuntimeModelInfo::traceInfo.

Referenced by initialize().

◆ encode()

void circt::arc::runtime::impl::FSTTraceEncoder::encode ( TraceBuffer & work )

overrideprotectedvirtual

Encode the given trace buffer. Called by the worker thread.

Reimplemented from circt::arc::runtime::impl::TraceEncoder.

Definition at line 193 of file FSTTraceEncoder.cpp.

References assert(), circt::arc::runtime::impl::TraceBuffer::firstSimTime, circt::arc::runtime::impl::TraceBuffer::firstStep, fstWriter, circt::arc::runtime::impl::TraceBuffer::getData(), signalTable, circt::arc::runtime::impl::TraceBuffer::size, circt::arc::runtime::impl::TraceBuffer::stepMarkers, and workerStep.

◆ finalize()

void circt::arc::runtime::impl::FSTTraceEncoder::finalize ( const ArcState * state )

overrideprotectedvirtual

Finish trace encoding. Called by the simulation thread.

Reimplemented from circt::arc::runtime::impl::TraceEncoder.

Definition at line 232 of file FSTTraceEncoder.cpp.

References assert(), fstWriter, circt::arc::runtime::impl::TraceEncoder::getTimeStep(), ArcState::modelState, and workerStep.

◆ initialize()

bool circt::arc::runtime::impl::FSTTraceEncoder::initialize ( const ArcState * state )

overrideprotectedvirtual

Set-up the encoder before starting the worker thread.

May return false to indicate failure. In this case, no worker thread will be created. Called by the simulation thread.

Implements circt::arc::runtime::impl::TraceEncoder.

Definition at line 153 of file FSTTraceEncoder.cpp.

References assert(), createHierarchy(), fstWriter, initSignalTable(), circt::arc::runtime::impl::TraceEncoder::modelInfo, ArcRuntimeModelInfo::modelName, ArcState::modelState, ArcRuntimeModelInfo::numStateBytes, outFilePath, and signalTable.

◆ initSignalTable()

void circt::arc::runtime::impl::FSTTraceEncoder::initSignalTable ( )

private

Create the table of signals.

Definition at line 67 of file FSTTraceEncoder.cpp.

References circt::arc::runtime::impl::TraceEncoder::modelInfo, signalTable, and ArcRuntimeModelInfo::traceInfo.

Referenced by initialize().

◆ startUpWorker()

void circt::arc::runtime::impl::FSTTraceEncoder::startUpWorker ( )

overrideprotectedvirtual

Called by the worker thread before entering the encode loop.

Reimplemented from circt::arc::runtime::impl::TraceEncoder.

Definition at line 191 of file FSTTraceEncoder.cpp.

References workerStep.

◆ windDownWorker()

void circt::arc::runtime::impl::FSTTraceEncoder::windDownWorker ( )

overrideprotectedvirtual

Called by the worker thread after leaving the encode loop.

Reimplemented from circt::arc::runtime::impl::TraceEncoder.

Definition at line 230 of file FSTTraceEncoder.cpp.

Member Data Documentation

◆ fstWriter

struct::fstWriterContext* circt::arc::runtime::impl::FSTTraceEncoder::fstWriter = nullptr

private

FST writer context.

Definition at line 71 of file FSTTraceEncoder.h.

Referenced by createHierarchy(), encode(), finalize(), and initialize().

◆ numTraceBuffers

constexpr unsigned circt::arc::runtime::impl::FSTTraceEncoder::numTraceBuffers = 4

staticconstexpr

Definition at line 48 of file FSTTraceEncoder.h.

◆ outFilePath

const std::filesystem::path circt::arc::runtime::impl::FSTTraceEncoder::outFilePath

private

Path to the output file.

Definition at line 67 of file FSTTraceEncoder.h.

Referenced by initialize().

◆ signalTable

std::vector<FSTSignalTableEntry> circt::arc::runtime::impl::FSTTraceEncoder::signalTable

private

Table of signals: The index matches their Trace Tap ID.

Definition at line 69 of file FSTTraceEncoder.h.

Referenced by createHierarchy(), encode(), initialize(), and initSignalTable().

◆ workerStep

int64_t circt::arc::runtime::impl::FSTTraceEncoder::workerStep

private

Current time step of the worker thread.

Definition at line 73 of file FSTTraceEncoder.h.

Referenced by encode(), finalize(), and startUpWorker().

The documentation for this class was generated from the following files:

/home/runner/work/circt-www/circt-www/circt_src/include/circt/Dialect/Arc/Runtime/FSTTraceEncoder.h
/home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/Arc/Runtime/FSTTraceEncoder.cpp
