Trace buffer encoder producing a VCD file. More...

#include <VCDTraceEncoder.h>

Inheritance diagram for circt::arc::runtime::impl::VCDTraceEncoder:

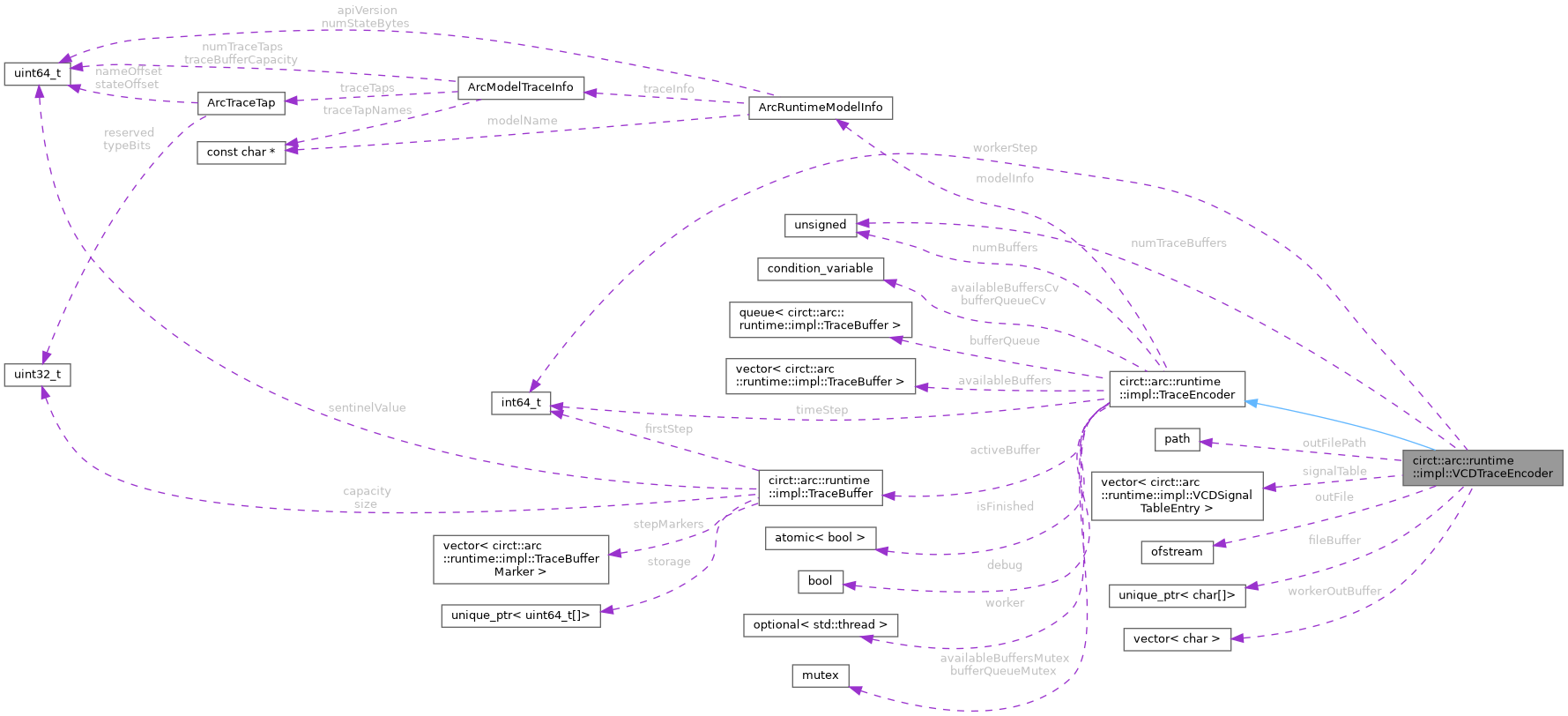

Collaboration diagram for circt::arc::runtime::impl::VCDTraceEncoder:

[legend]

Public Member Functions
	VCDTraceEncoder (const ArcRuntimeModelInfo modelInfo, ArcState state, const std::filesystem::path &outFilePath, bool debug)

Public Member Functions inherited from circt::arc::runtime::impl::TraceEncoder
	TraceEncoder ()=delete

	TraceEncoder (const ArcRuntimeModelInfo modelInfo, ArcState state, unsigned numBuffers, bool debug)
	Construct a trace encoder for the given model and the given number of buffers.

virtual	~TraceEncoder ()=default

void	run (ArcState *state)
	Begin tracing.

uint64_t *	dispatch (uint32_t oldBufferSize)
	Dispatch the currently active trace buffer containing `oldBufferSize` valid entries to the encoder thread and return the storage of the new active buffer.

void	step (const ArcState *state)
	Signal the start of a new simulation time step.

void	finish (const ArcState *state)
	Stop tracing.

Static Public Attributes
static constexpr unsigned	numTraceBuffers = 4

Protected Member Functions
bool	initialize (const ArcState *state) override
	Set-up the encoder before starting the worker thread.

void	startUpWorker () override
	Called by the worker thread before entering the encode loop.

void	encode (TraceBuffer &work) override
	Encode the given trace buffer. Called by the worker thread.

void	windDownWorker () override
	Called by the worker thread after leaving the encode loop.

void	finalize (const ArcState *state) override
	Finish trace encoding. Called by the simulation thread.

Private Member Functions
void	initSignalTable ()
	Create the table of signals.

void	createHierarchy ()
	Build and dump the signal hierarchy.

Private Attributes
const std::filesystem::path	outFilePath
	Path to the output file.

std::vector< VCDSignalTableEntry >	signalTable
	Table of signals: The index matches their Trace Tap ID.

std::ofstream	outFile
	Output file stream.

std::unique_ptr< char[]>	fileBuffer
	Internal buffer of the output stream.

std::vector< char >	workerOutBuffer
	Concatenation buffer of the worker thread.

int64_t	workerStep
	Current time step of the worker thread.

Additional Inherited Members
Public Attributes inherited from circt::arc::runtime::impl::TraceEncoder
const unsigned	numBuffers
	Number of trace buffers in rotation.

Protected Attributes inherited from circt::arc::runtime::impl::TraceEncoder
const ArcRuntimeModelInfo *const	modelInfo
	Metadata of the traced model.

const bool	debug
	Debug mode flag.

Detailed Description

Trace buffer encoder producing a VCD file.

Definition at line 68 of file VCDTraceEncoder.h.

Constructor & Destructor Documentation

◆ VCDTraceEncoder()

circt::arc::runtime::impl::VCDTraceEncoder::VCDTraceEncoder	(	const ArcRuntimeModelInfo *	modelInfo,
		ArcState *	state,
		const std::filesystem::path &	outFilePath,
		bool	debug
	)

Definition at line 88 of file VCDTraceEncoder.cpp.

Member Function Documentation

◆ createHierarchy()

void circt::arc::runtime::impl::VCDTraceEncoder::createHierarchy ( )

private

Build and dump the signal hierarchy.

Definition at line 118 of file VCDTraceEncoder.cpp.

References circt::arc::runtime::impl::appendLegalizedName(), assert(), circt::arc::runtime::impl::TraceEncoder::modelInfo, outFile, signalTable, and ArcRuntimeModelInfo::traceInfo.

Referenced by initialize().

◆ encode()

void circt::arc::runtime::impl::VCDTraceEncoder::encode ( TraceBuffer & work )

overrideprotectedvirtual

Encode the given trace buffer. Called by the worker thread.

Reimplemented from circt::arc::runtime::impl::TraceEncoder.

Definition at line 249 of file VCDTraceEncoder.cpp.

References assert(), circt::arc::runtime::impl::TraceBuffer::firstStep, circt::arc::runtime::impl::TraceBuffer::getData(), outFile, signalTable, circt::arc::runtime::impl::TraceBuffer::size, circt::arc::runtime::impl::TraceBuffer::stepMarkers, workerOutBuffer, workerStep, and circt::arc::runtime::impl::writeTimestepToBuffer().

◆ finalize()

void circt::arc::runtime::impl::VCDTraceEncoder::finalize ( const ArcState * state )

overrideprotectedvirtual

Finish trace encoding. Called by the simulation thread.

Reimplemented from circt::arc::runtime::impl::TraceEncoder.

Definition at line 298 of file VCDTraceEncoder.cpp.

References outFile.

◆ initialize()

bool circt::arc::runtime::impl::VCDTraceEncoder::initialize ( const ArcState * state )

overrideprotectedvirtual

Set-up the encoder before starting the worker thread.

May return false to indicate failure. In this case, no worker thread will be created. Called by the simulation thread.

Implements circt::arc::runtime::impl::TraceEncoder.

Definition at line 209 of file VCDTraceEncoder.cpp.

References assert(), createHierarchy(), fileBuffer, initSignalTable(), circt::arc::runtime::impl::TraceEncoder::modelInfo, ArcRuntimeModelInfo::modelName, ArcState::modelState, ArcRuntimeModelInfo::numStateBytes, outFile, outFilePath, and signalTable.

◆ initSignalTable()

void circt::arc::runtime::impl::VCDTraceEncoder::initSignalTable ( )

private

Create the table of signals.

Definition at line 95 of file VCDTraceEncoder.cpp.

References circt::arc::runtime::impl::TraceEncoder::modelInfo, signalTable, and ArcRuntimeModelInfo::traceInfo.

Referenced by initialize().

◆ startUpWorker()

void circt::arc::runtime::impl::VCDTraceEncoder::startUpWorker ( )

overrideprotectedvirtual

Called by the worker thread before entering the encode loop.

Reimplemented from circt::arc::runtime::impl::TraceEncoder.

Definition at line 247 of file VCDTraceEncoder.cpp.

References workerStep.

◆ windDownWorker()

void circt::arc::runtime::impl::VCDTraceEncoder::windDownWorker ( )

overrideprotectedvirtual

Called by the worker thread after leaving the encode loop.

Reimplemented from circt::arc::runtime::impl::TraceEncoder.

Definition at line 288 of file VCDTraceEncoder.cpp.

References assert(), outFile, workerOutBuffer, workerStep, and circt::arc::runtime::impl::writeTimestepToBuffer().

Member Data Documentation

◆ fileBuffer

std::unique_ptr<char[]> circt::arc::runtime::impl::VCDTraceEncoder::fileBuffer

private

Internal buffer of the output stream.

Do not access directly. Do not release until outFile is closed.

Definition at line 96 of file VCDTraceEncoder.h.

Referenced by initialize().

◆ numTraceBuffers

constexpr unsigned circt::arc::runtime::impl::VCDTraceEncoder::numTraceBuffers = 4

staticconstexpr

Definition at line 70 of file VCDTraceEncoder.h.

◆ outFile

std::ofstream circt::arc::runtime::impl::VCDTraceEncoder::outFile

private

Output file stream.

Definition at line 93 of file VCDTraceEncoder.h.

Referenced by createHierarchy(), encode(), finalize(), initialize(), and windDownWorker().

◆ outFilePath

const std::filesystem::path circt::arc::runtime::impl::VCDTraceEncoder::outFilePath

private

Path to the output file.

Definition at line 89 of file VCDTraceEncoder.h.

Referenced by initialize().

◆ signalTable

std::vector<VCDSignalTableEntry> circt::arc::runtime::impl::VCDTraceEncoder::signalTable

private

Table of signals: The index matches their Trace Tap ID.

Definition at line 91 of file VCDTraceEncoder.h.

Referenced by createHierarchy(), encode(), initialize(), and initSignalTable().

◆ workerOutBuffer

std::vector<char> circt::arc::runtime::impl::VCDTraceEncoder::workerOutBuffer

private

Concatenation buffer of the worker thread.

Definition at line 98 of file VCDTraceEncoder.h.

Referenced by encode(), and windDownWorker().

◆ workerStep

int64_t circt::arc::runtime::impl::VCDTraceEncoder::workerStep

private

Current time step of the worker thread.

Definition at line 100 of file VCDTraceEncoder.h.

Referenced by encode(), startUpWorker(), and windDownWorker().
