circt::synth::ValueWithArrivalTime Class Reference

Helper class for delay-aware tree building. More...

#include <SynthOps.h>

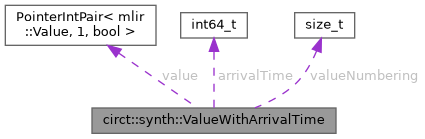

Collaboration diagram for circt::synth::ValueWithArrivalTime:

Public Member Functions
	ValueWithArrivalTime (mlir::Value value, int64_t arrivalTime, bool invert, size_t valueNumbering=0)
mlir::Value	getValue () const
bool	isInverted () const
int64_t	getArrivalTime () const
ValueWithArrivalTime &	flipInversion ()
bool	operator> (const ValueWithArrivalTime &other) const
	Comparison operator for priority queue.

Private Attributes
llvm::PointerIntPair< mlir::Value, 1, bool >	value
	The value and an optional inversion flag packed together.
int64_t	arrivalTime
	The arrival time (delay) of this value in the circuit.
size_t	valueNumbering = 0
	Value numbering for deterministic ordering when arrival times are equal.

Detailed Description

Helper class for delay-aware tree building.

Stores a value along with its arrival time and inversion flag.

Definition at line 58 of file SynthOps.h.

Constructor & Destructor Documentation

ValueWithArrivalTime()

circt::synth::ValueWithArrivalTime::ValueWithArrivalTime ( mlir::Value value, int64_t arrivalTime, bool invert, size_t valueNumbering = 0 )

inline

Definition at line 72 of file SynthOps.h.

References arrivalTime, value, and valueNumbering.

Referenced by flipInversion(), and operator>().

Member Function Documentation

flipInversion()

ValueWithArrivalTime & circt::synth::ValueWithArrivalTime::flipInversion ( )

inline

Definition at line 81 of file SynthOps.h.

References value, and ValueWithArrivalTime().

getArrivalTime()

int64_t circt::synth::ValueWithArrivalTime::getArrivalTime ( ) const

inline

Definition at line 79 of file SynthOps.h.

References arrivalTime.

getValue()

mlir::Value circt::synth::ValueWithArrivalTime::getValue ( ) const

inline

Definition at line 77 of file SynthOps.h.

References value.

isInverted()

bool circt::synth::ValueWithArrivalTime::isInverted ( ) const

inline

Definition at line 78 of file SynthOps.h.

References value.

operator>()

bool circt::synth::ValueWithArrivalTime::operator> ( const ValueWithArrivalTime & other ) const

inline

Comparison operator for priority queue.

Values with earlier arrival times have higher priority. When arrival times are equal, use value numbering for determinism.

Definition at line 89 of file SynthOps.h.

References arrivalTime, valueNumbering, and ValueWithArrivalTime().

Member Data Documentation

arrivalTime

int64_t circt::synth::ValueWithArrivalTime::arrivalTime

private

The arrival time (delay) of this value in the circuit.

Definition at line 64 of file SynthOps.h.

Referenced by getArrivalTime(), operator>(), and ValueWithArrivalTime().

value

llvm::PointerIntPair<mlir::Value, 1, bool> circt::synth::ValueWithArrivalTime::value

private

The value and an optional inversion flag packed together.

The inversion flag is used for AndInverterOp lowering.

Definition at line 61 of file SynthOps.h.

Referenced by flipInversion(), getValue(), synth.Object::is_output_port(), isInverted(), Python.support.OpOperand::type(), and ValueWithArrivalTime().

valueNumbering

size_t circt::synth::ValueWithArrivalTime::valueNumbering = 0

private

Value numbering for deterministic ordering when arrival times are equal.

This ensures consistent results across runs when multiple values have the same delay.

Definition at line 69 of file SynthOps.h.

Referenced by operator>(), and ValueWithArrivalTime().

---

The documentation for this class was generated from the following file:

• /home/runner/work/circt-www/circt-www/circt_src/include/circt/Dialect/Synth/SynthOps.h
