Configuration options for the cut-based rewriting algorithm. More...
#include <CutRewriter.h>

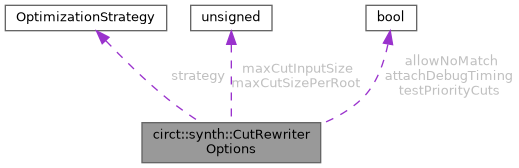

Public Attributes | |
| OptimizationStrategy | strategy |
| Optimization strategy (area vs. timing). | |
| unsigned | maxCutInputSize |
| Maximum number of inputs allowed for any cut. | |
| unsigned | maxCutSizePerRoot |
| Maximum number of cuts to maintain per logic node. | |
| bool | allowNoMatch = false |
| Fail if there is a root operation that has no matching pattern. | |
| bool | attachDebugTiming = false |
| Put arrival times to rewritten operations. | |
| bool | testPriorityCuts = false |
| Run priority cuts enumeration and dump the cut sets. | |
| const NPNTable * | npnTable = nullptr |
| Optional lookup table used to accelerate 4-input NPN canonicalization. | |
Detailed Description
Configuration options for the cut-based rewriting algorithm.
These options control various aspects of the rewriting process including optimization strategy, resource limits, and algorithmic parameters.
Definition at line 560 of file CutRewriter.h.
Member Data Documentation
◆ allowNoMatch
| bool circt::synth::CutRewriterOptions::allowNoMatch = false |
Fail if there is a root operation that has no matching pattern.
Definition at line 575 of file CutRewriter.h.
Referenced by circt::synth::CutRewriter::runBottomUpRewrite(), GenericLUTMapperPass::runOnOperation(), and SOPBalancingPass::runOnOperation().
◆ attachDebugTiming
| bool circt::synth::CutRewriterOptions::attachDebugTiming = false |
Put arrival times to rewritten operations.
Definition at line 578 of file CutRewriter.h.
Referenced by circt::synth::CutRewriter::runBottomUpRewrite(), and GenericLUTMapperPass::runOnOperation().
◆ maxCutInputSize
| unsigned circt::synth::CutRewriterOptions::maxCutInputSize |
Maximum number of inputs allowed for any cut.
Larger cuts provide more optimization opportunities but increase computational complexity exponentially.
Definition at line 567 of file CutRewriter.h.
Referenced by circt::synth::CutSet::finalize(), circt::synth::CutRewriter::run(), GenericLUTMapperPass::runOnOperation(), SOPBalancingPass::runOnOperation(), and circt::synth::CutEnumerator::visitLogicOp().
◆ maxCutSizePerRoot
| unsigned circt::synth::CutRewriterOptions::maxCutSizePerRoot |
Maximum number of cuts to maintain per logic node.
The priority cuts algorithm keeps only the most promising cuts to prevent exponential explosion.
Definition at line 572 of file CutRewriter.h.
Referenced by circt::synth::CutSet::finalize(), circt::synth::CutRewriter::run(), GenericLUTMapperPass::runOnOperation(), and SOPBalancingPass::runOnOperation().
◆ npnTable
| const NPNTable* circt::synth::CutRewriterOptions::npnTable = nullptr |
Optional lookup table used to accelerate 4-input NPN canonicalization.
Definition at line 584 of file CutRewriter.h.
Referenced by circt::synth::CutRewriter::getMatchingPatternsFromTruthTable(), TechLibraryPattern::match(), circt::synth::CutRewriter::patternMatchCut(), and TechLibraryPattern::rewrite().
◆ strategy
| OptimizationStrategy circt::synth::CutRewriterOptions::strategy |
Optimization strategy (area vs. timing).
Definition at line 562 of file CutRewriter.h.
Referenced by circt::synth::CutSet::finalize(), circt::synth::CutRewriter::patternMatchCut(), circt::synth::CutRewriter::run(), GenericLUTMapperPass::runOnOperation(), and SOPBalancingPass::runOnOperation().
◆ testPriorityCuts
| bool circt::synth::CutRewriterOptions::testPriorityCuts = false |
Run priority cuts enumeration and dump the cut sets.
Definition at line 581 of file CutRewriter.h.
Referenced by circt::synth::CutRewriter::run().
The documentation for this struct was generated from the following file:
- /home/runner/work/circt-www/circt-www/circt_src/include/circt/Dialect/Synth/Transforms/CutRewriter.h
