circt::hw::HierPathCache Class Reference

#include <HierPathCache.h>

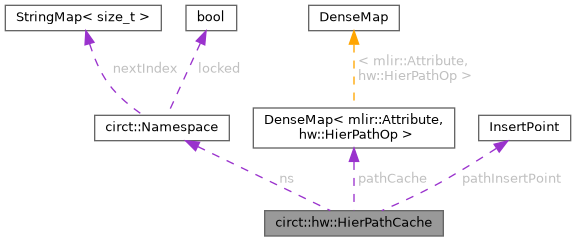

Collaboration diagram for circt::hw::HierPathCache:

Public Member Functions
	HierPathCache (Namespace *ns, OpBuilder::InsertPoint insertionPoint)
HierPathOp	getOrCreatePath (ArrayAttr pathArray, Location loc, StringRef nameHint="xmrPath")
	Get an existing hw::HierPathOp at the default location in the circuit.
HierPathOp	getOrCreatePath (ArrayAttr pathArray, Location loc, OpBuilder::InsertPoint &insertPoint, StringRef nameHint="xmrPath")
	Get an existing hw::HierPathOp at a specific location in the circuit.

Private Attributes
Namespace *	ns
	A namespace in which symbols for hierarchical path ops will be created.
DenseMap< mlir::Attribute, hw::HierPathOp >	pathCache
	A cache of already created HierPathOps.
OpBuilder::InsertPoint	pathInsertPoint
	The insertion point where the pass inserts HierPathOps.

Detailed Description

Definition at line 30 of file HierPathCache.h.

Constructor & Destructor Documentation

HierPathCache()

circt::hw::HierPathCache::HierPathCache ( Namespace *  ns, OpBuilder::InsertPoint  insertionPoint  )

inline

Definition at line 32 of file HierPathCache.h.

Member Function Documentation

getOrCreatePath() [1/2]

HierPathOp circt::hw::HierPathCache::getOrCreatePath	(	ArrayAttr	pathArray,
		Location	loc,
		OpBuilder::InsertPoint &	insertPoint,
		StringRef	nameHint = "xmrPath"
	)

Get an existing hw::HierPathOp at a specific location in the circuit.

The insertion point will be updated to allow for this method to be used repeatedly to create the ops predictably, one after the other.

Definition at line 24 of file HierPathCache.cpp.

References assert(), circt::Namespace::newName(), ns, and pathCache.

getOrCreatePath() [2/2]

HierPathOp circt::hw::HierPathCache::getOrCreatePath	(	ArrayAttr	pathArray,
		Location	loc,
		StringRef	nameHint = "xmrPath"
	)

Get an existing hw::HierPathOp at the default location in the circuit.

Definition at line 19 of file HierPathCache.cpp.

References getOrCreatePath(), and pathInsertPoint.

Referenced by getOrCreatePath().

Member Data Documentation

ns

Namespace* circt::hw::HierPathCache::ns

private

A namespace in which symbols for hierarchical path ops will be created.

Definition at line 48 of file HierPathCache.h.

Referenced by getOrCreatePath().

pathCache

DenseMap<mlir::Attribute, hw::HierPathOp> circt::hw::HierPathCache::pathCache

private

A cache of already created HierPathOps.

This is used to avoid repeatedly creating the same HierPathOp.

Definition at line 52 of file HierPathCache.h.

Referenced by getOrCreatePath().

pathInsertPoint

OpBuilder::InsertPoint circt::hw::HierPathCache::pathInsertPoint

private

The insertion point where the pass inserts HierPathOps.

Definition at line 55 of file HierPathCache.h.

Referenced by getOrCreatePath().

---

The documentation for this class was generated from the following files:

• /home/runner/work/circt-www/circt-www/circt_src/include/circt/Dialect/HW/HierPathCache.h
• /home/runner/work/circt-www/circt-www/circt_src/lib/Dialect/HW/HierPathCache.cpp
